nh S2 22

IP20 Dimmerable:

Downloadable files

2D Model
  • nh S2 22 Suspension.dwg
  • nh S2 22 Suspension.dxf
3D Model
  • nh S2 22 Suspension.3ds
  • nh S2 22 Suspension.stp
Silhouette
  • nh1217 S2 22_silhouette.jpg
Instructions
  • Y513000952A F_IS nh S1-S2.pdf
DiaLux ULD File
  • 1275010A.uld
IES Europe
  • 1275010A.IES
IES USA
  • 1275010A.IES
LDT File
  • 1275010A.LDT
LDT PDF
  • 1275010A.PDF
FEATURES
  • Product Code: 1275010A
  • Colour: Black/brass
  • Installation: Suspension
  • Material: Blown glass, brushed brass
  • Series: Design Collection
  • Environment: Indoor
  • design by: Neri&Hu
LUMINAIRE *
  • Watt: 13W
  • Voltage: 220-240V
  • Delivered lumen output: 1142lm
  • Efficiency: 75%
  • Efficacy: 87.83lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

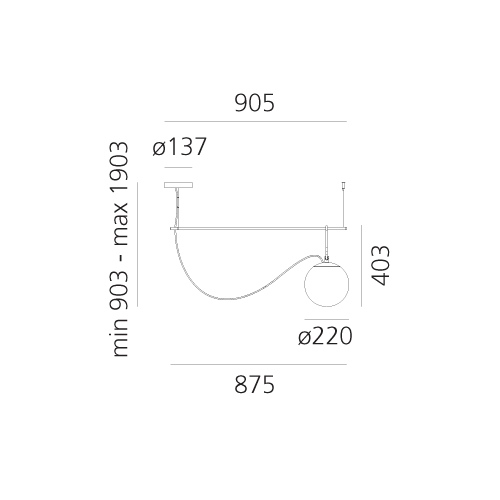

DIMENSIONS
  • Length: 905 mm
  • Height: 403 mm
  • Base Diameter: 137 mm
  • Max Height from ceiling: 1903 mm
  • Max Extension Length: 900 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 1
  • Watt: MAX 15W
  • Socket: E27
Notes

The glass ball and brass rings can slide along the rod. The light intensity can only be adjusted with dimmable bulbs. Maximum bulb length 125mm. Maximum bulb diameter: 70mm.
