nh S3 14

IP20 Dimmerable:

Downloadable files

2D Model
  • nh S3 14 Suspension.dwg
  • nh S3 14 Suspension.dxf
3D Model
  • nh S3 14 Suspension.3ds
  • nh S3 14 Suspension.stp
Silhouette
  • nh1217-S3-14.jpg
Instructions
  • Y513000953A F_IS nh S3.pdf
DiaLux ULD File
  • 1276010A.uld
IES Europe
  • 1276010A.IES
IES USA
  • 1276010A.IES
LDT File
  • 1276010A.LDT
LDT PDF
  • 1276010A.PDF
FEATURES
  • Product Code: 1276010A
  • Colour: Black/brass
  • Installation: Suspension
  • Material: Blown glass, brushed brass
  • Series: Design Collection
  • Environment: Indoor
  • design by: Neri&Hu
LUMINAIRE *
  • Watt: 15W
  • Voltage: 220-240V
  • Delivered lumen output: 1134lm
  • Efficiency: 80%
  • Efficacy: 75.57lm/W
  • CRI: 80

Photometric data may vary depending on the source installed.
Light measurements are provided in relative form and technical lighting calculations may be updated according to the effective source used.

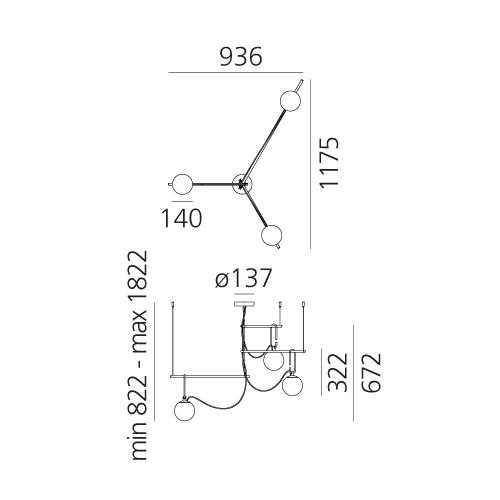

DIMENSIONS
  • Length: 1175 mm
  • Width: 936 mm
  • Height: 672 mm
  • Base Diameter: 137 mm
  • Max Height from ceiling: 1822 mm
  • Glow Wire Test: 850°
SOURCES NOT INCLUDED
  • Category: Led Retrofit
  • Number: 3
  • Watt: MAX 5W
  • Socket: E14
Notes

The glass balls and brass rings can slide along the rods, which can be fixed according to an orientation chosen by the customer.  The light intensity can only be adjusted with dimmable bulbs. Maximum bulb length 80mm. Maximum bulb diameter: 50mm.
