Dreispitz - Wall/Ceiling - 2 Diffused Emission - 120 - Silver

Downloadable files

2D Model
  • Dreispitz 120 Wall.dwg
  • Dreispitz 120 Wall.dxf
3D Model
  • Dreispitz 120 Wall.3ds
  • Dreispitz 120 Wall.stp

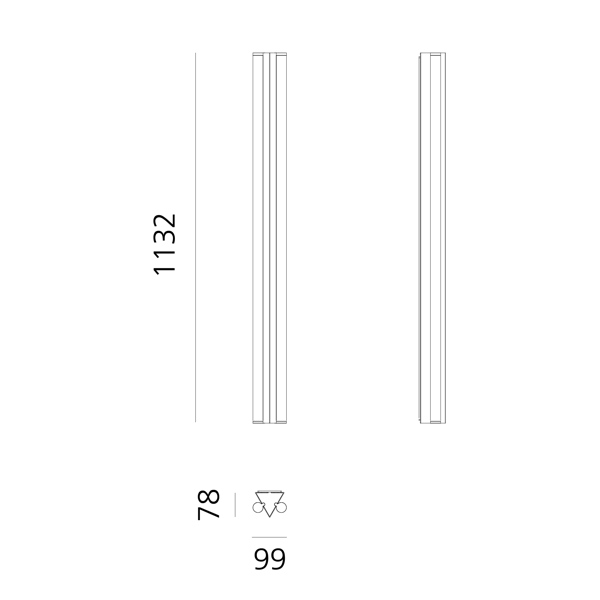

Silhouette
  • Dreispitz wall/ceiling 120 2 diffused emission.jpg
Instructions
  • Y513002015A F_IS DREISPITZ WALL-CEILING.pdf
IES Europe
  • 1862000A.IES
IES USA
  • 1862000A.IES
LDT File
  • 1862000A.LDT
LDT PDF
  • 1862000A.PDF
FEATURES
  • Product Code: 1862000A
  • Colour: Silver
  • Installation: Ceiling, Wall
  • Series: Architectural Indoor
  • design by: Herzog & de Meuron
LUMINAIRE
  • Watt: 28W
  • Delivered lumen output: 3287lm
  • CCT: 3000K
  • Efficiency: 81%
  • Efficacy: 117.39lm/W
  • CRI: 90
DIMENSIONS
  • Length: 822 mm
  • Width: 99 mm
  • Height: 78 mm
Download all Data sheet PDF
