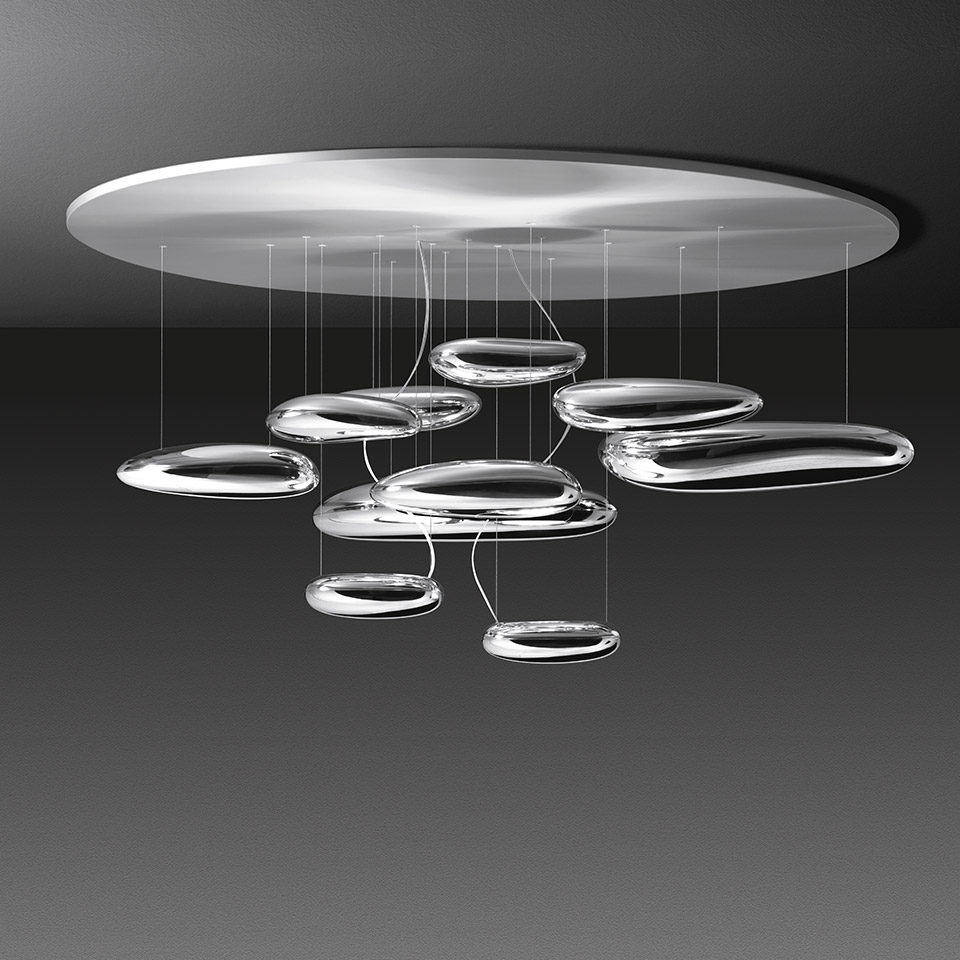

Mercury Soffitto LED 3000K

IP20 Dimmerabile:

File scaricabili

2D Model
  • Mercury_soffitto.dwg
  • mercury_soffitto.dxf
3D Model
  • Mercury Soffitto_3D.3ds
  • Mercury Soffitto_3D.stp
Silhouette
  • Mercury_soffitto.jpg
Instructions
  • Y513000272C F_IS MERCURY LED.pdf
IES Europe
  • 1366110A.IES
IES USA
  • 1366110A.IES
LDT File
  • 1366110A.LDT
LDT PDF
  • 1366110A.PDF
CARATTERISTICHE
  • Codice Prodotto: 1366110A
  • Colore: Cromo lucido
  • Installazione: Soffitto
  • Materiale: Struttura riflettente in acciaio inox, corpi illuminanti in alluminio
  • Serie: Design Collection, Hydro
  • Ambiente di utilizzo: Interni
  • Area di utilizzo: Hospitality, Office, Residential
  • Emissione: Indiretta
  • design by: Ross Lovegrove
LUMINAIRE
  • Watt : 58W
  • Tensione di alimentazione: 220V-240V
  • Flusso luminoso emesso: 3094lm
  • CCT: 3000K
  • Efficiency: 54%
  • Efficacy: 53.34lm/W
  • CRI: 90
  • Dimmable Typology: Push

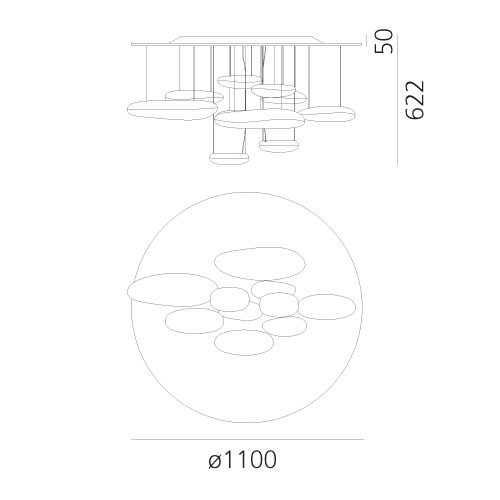

DIMENSIONI
  • Altezza: 550 mm
  • Diametro: 1100 mm
  • Prova del filo incandescente: 650°
SORGENTI INCLUSE
  • Categoria: Led
  • Numero: 2
  • Watt: 23.62W
  • Flusso luminoso emesso: 2840lm
  • Temperatura Colore (K): 3000K
  • CRI: 90
  • Color Tolerance: MacAdam 2SDCM
  • Efficacy: 120lm/W
  • Service Life: 50000-L70
AWARDS

2008 – Good Design Award The Chicago Atheneum, Chicago (US)

Scarica Tutti Scheda tecnica PDF
