Surf
System

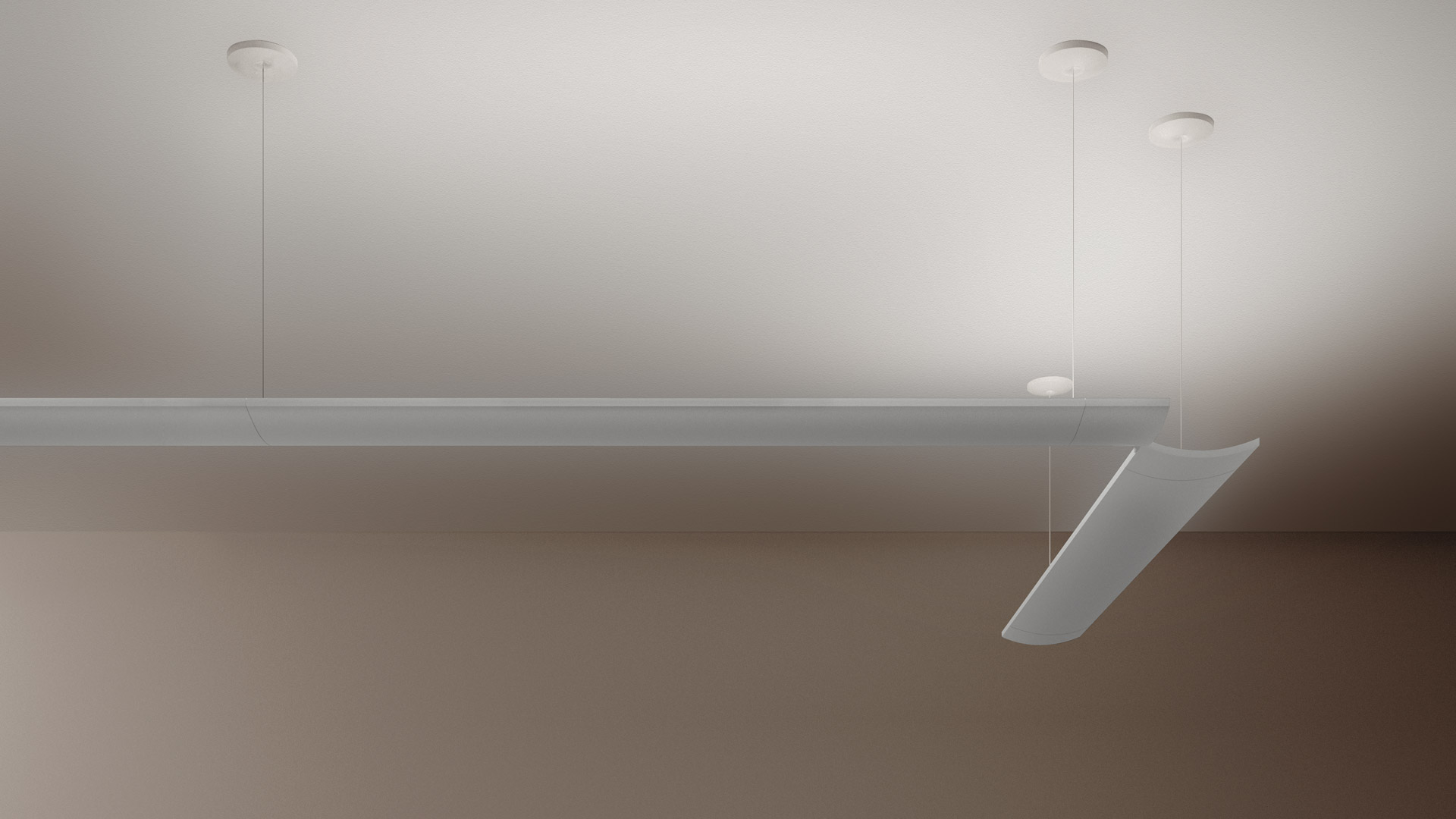

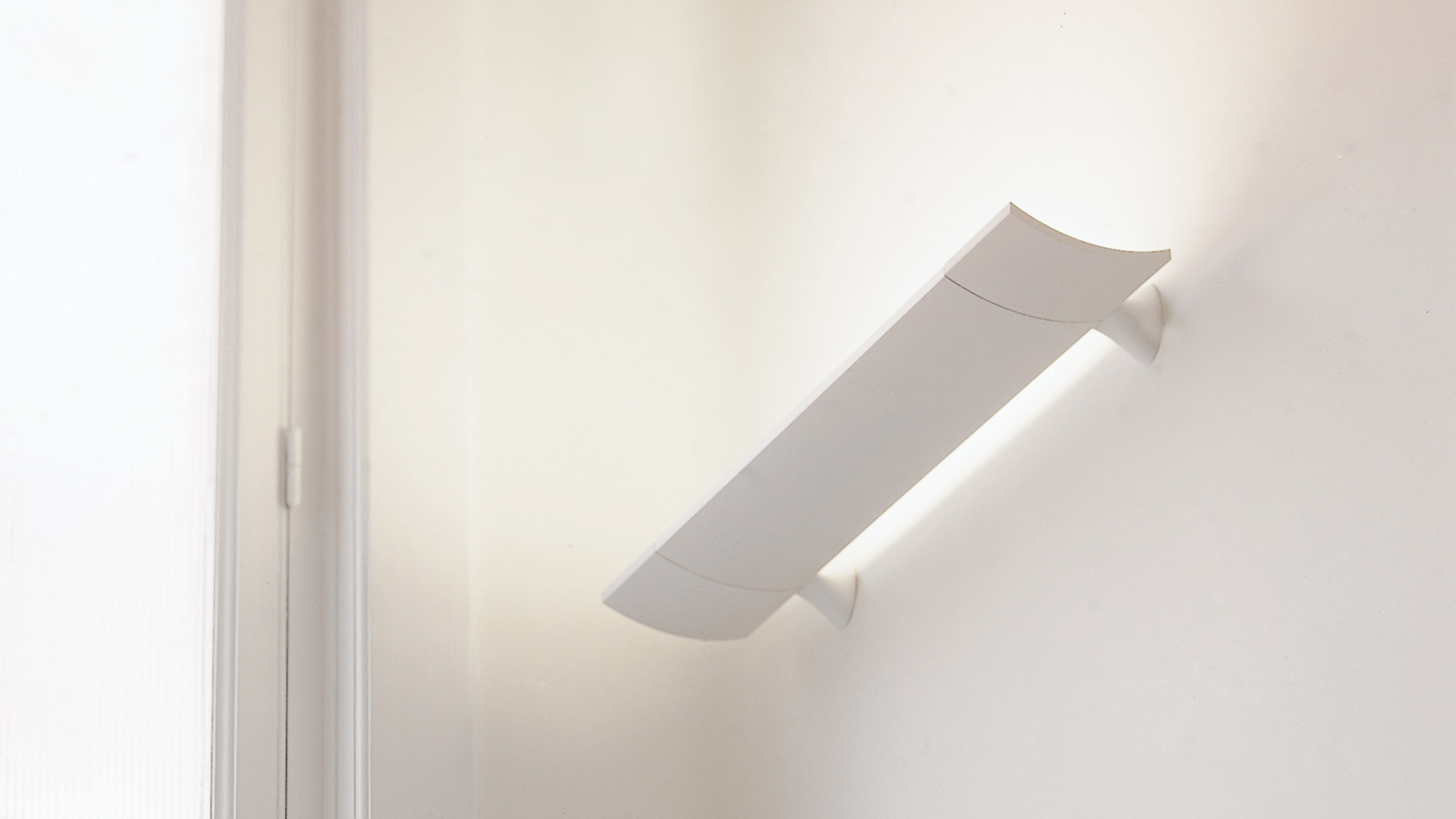

A valid alternative to fluorescent modules for general lighting solutions of the tertiary buildings, school premises, public or industrial spaces, and circulation areas, Surf System Led is a more than attractive option easily interchangeable with Surf System fluorescent modules of 1193mm (2x54W

T16) or 1493mm (2x80W) long. The same lighting level is obtained with up to 50 % less energy consumed and an exceptional luminaire efficiency of up to 100lm/W. A targeted range is available: two lengths of modules (1193 and 1493mm), four luminous flux options and two colour temperatures (3000K/5350lm-7000lm and 4000K/5450lm-7300lm) and three modes of electronic lighting management (non dimmable, dimmable Dali and Interactive-Dali System). Surf System Led is available in the same dimensions and is using the same finishing and fixing components like Surf System T16, guaranteeing perfect interchangeability with the fluorescent version.   1193 mm long module: Total luminous flux of luminaire: 5350 lm (3000 K) - 5450 lm (4000 K) Luminaire efficiency: 99 lm/W (3000 K) - 101 lm/W (4000 K) Light distribution: 100% indirect Total power of luminaire: 54W

Product overview

delivered lumens output

cct

dimmer

Technical characteristics
Product name Code Watt Lm CCT Colour Save
Surf System Led - Undimmable - 3000K - White Surf System Led - Undimmable - 3000K - White BD00001 53W 6223lm 3000K
Surf System Led - Undimmable - 4000K - White Surf System Led - Undimmable - 4000K - White BD00101 53W 6544lm 4000K
Surf System Led - Dimmable DALI - 3000K - White Surf System Led - Dimmable DALI - 3000K - White BD01001 53W 6223lm 3000K
Surf System Led - Dimmable DALI - 4000K - White Surf System Led - Dimmable DALI - 4000K - White BD01101 53W 6544lm 4000K
Product name
Code
Watt
Lm
CCT
Colour
Save
Surf System Led - Undimmable - 3000K - White
Surf System Led - Undimmable - 3000K - White
53W
6223lm
3000K
Surf System Led - Undimmable - 4000K - White
Surf System Led - Undimmable - 4000K - White
53W
6544lm
4000K
Surf System Led - Dimmable DALI - 3000K - White
Surf System Led - Dimmable DALI - 3000K - White
53W
6223lm
3000K
Surf System Led - Dimmable DALI - 4000K - White
Surf System Led - Dimmable DALI - 4000K - White
53W
6544lm
4000K
Surf
Collection
contact us for more information
