Tagora
Recessed 570

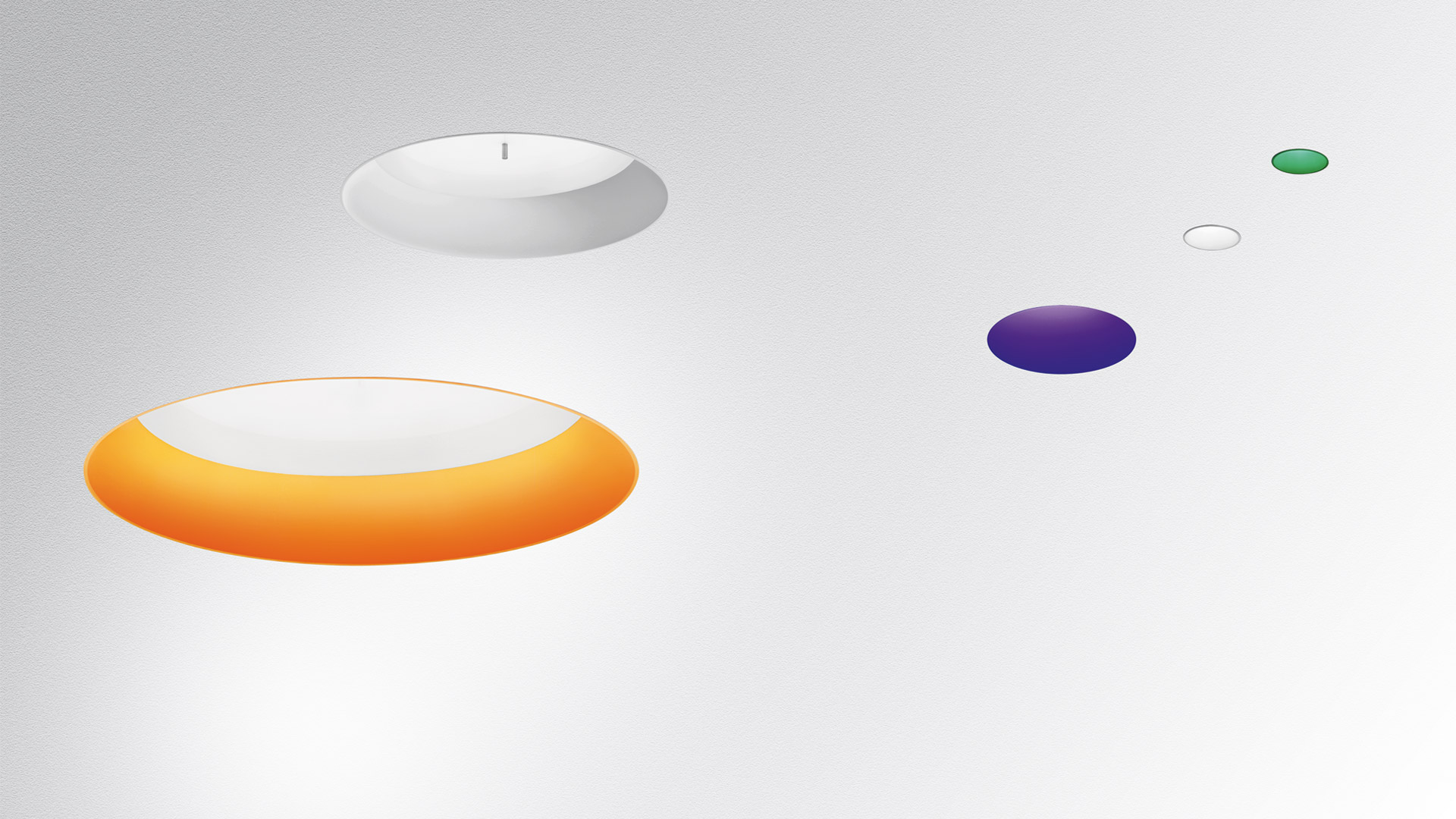

Series of ceiling mounted luminaires available in 4 diameters (80 mm, 270 mm, 570 mm, 970 mm), using high-output LEDs, Retrofit LEDs.
Consists of a trimless recessed frame fitted into the ceiling and an optical unit with an aluminium body painted in a range of colours: beige/white, grey/white, black/orange,
black/vert and black/blue.
Tagora 80 and 270 offer a high-output spot light with aluminium optics.
Tagora 270 uses a proprietary system based on a hybrid combined lens and reflector optic. This system helps to create defined narrow beams using high-powered LED modules of large dimensions.
Tagora 570 and 970 come with a PMMA diffuser, offering a comfortable diffused light. LED versions use high-output sources.
Integrated electronic power supply, dimmable or non-dimmable options, depending on the version. Only ceiling recessed installation allowed.
Compliant with standard EN60598-1 and other specific standards.
Series of ceiling mounted luminaires available in 4 diameters (80 mm, 270 mm, 570 mm, 970 mm), using high-output LEDs, Retrofit LEDs.
Consists of a trimless recessed frame fitted into the ceiling and an optical unit with an aluminium body painted in a range of colours: beige/white, grey/white, black/orange,

Product overview

colour

delivered lumens output

cct

Technical characteristics
Product name Code Watt Lm CCT Colour Save
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Blue Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Blue M250231 58W 3593lm 3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Green Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Green M250241 58W 3593lm 3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Orange Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Orange M250211 58W 3593lm 3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - White Tagora Recessed 570 - LED 3000K-Dali SwitchDim - White M250221 58W 3593lm 3000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Blue Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Blue M250331 58W 3820lm 4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Green Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Green M250341 58W 3820lm 4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Orange Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Orange M250311 58W 3820lm 4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - White Tagora Recessed 570 - LED 4000K-Dali SwitchDim - White M250321 58W 3820lm 4000K
Product name
Code
Watt
Lm
CCT
Colour
Save
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Blue
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Blue
58W
3593lm
3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Green
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Green
58W
3593lm
3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Orange
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - Orange
58W
3593lm
3000K
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - White
Tagora Recessed 570 - LED 3000K-Dali SwitchDim - White
58W
3593lm
3000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Blue
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Blue
58W
3820lm
4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Green
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Green
58W
3820lm
4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Orange
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - Orange
58W
3820lm
4000K
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - White
Tagora Recessed 570 - LED 4000K-Dali SwitchDim - White
58W
3820lm
4000K
