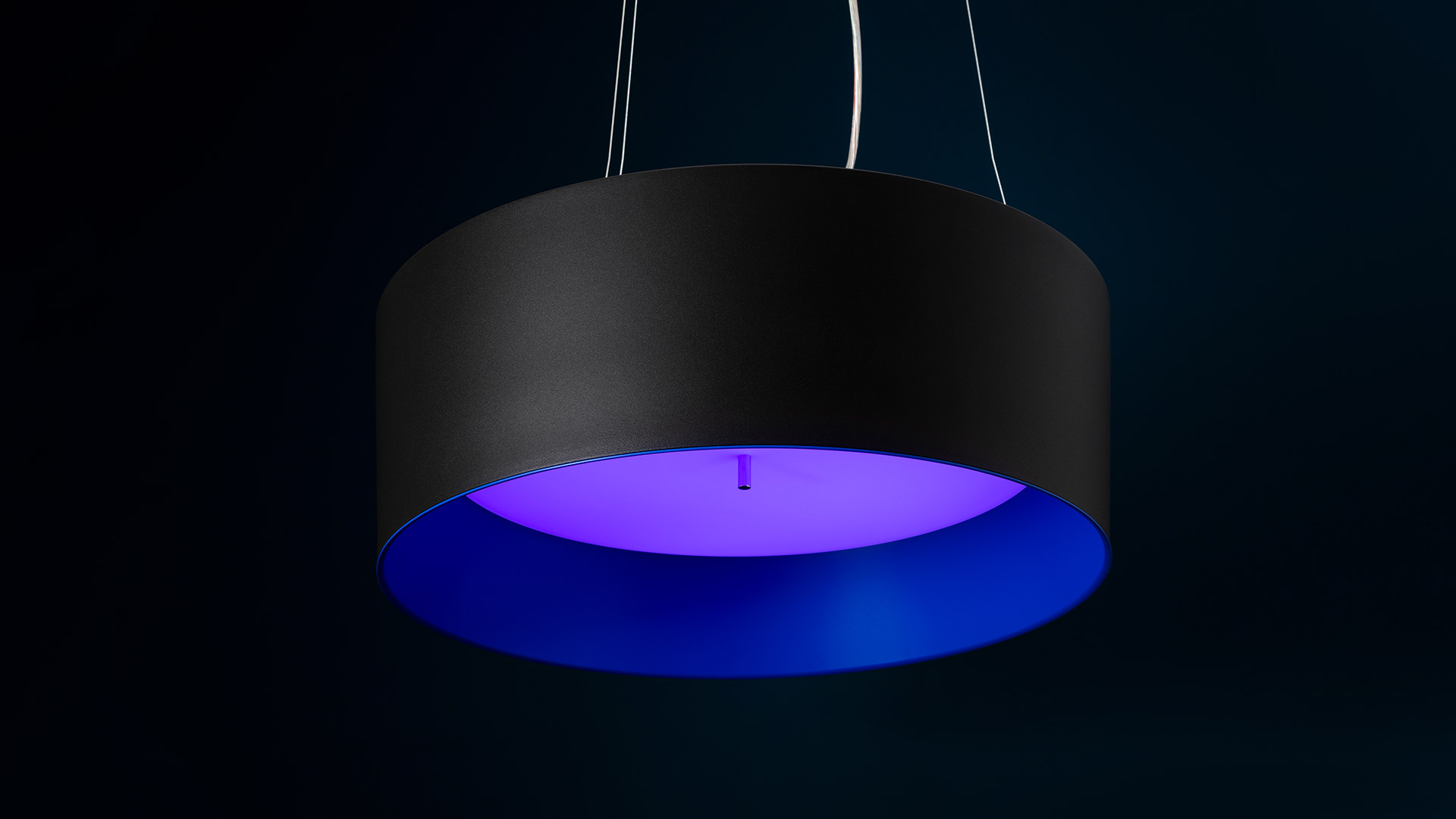

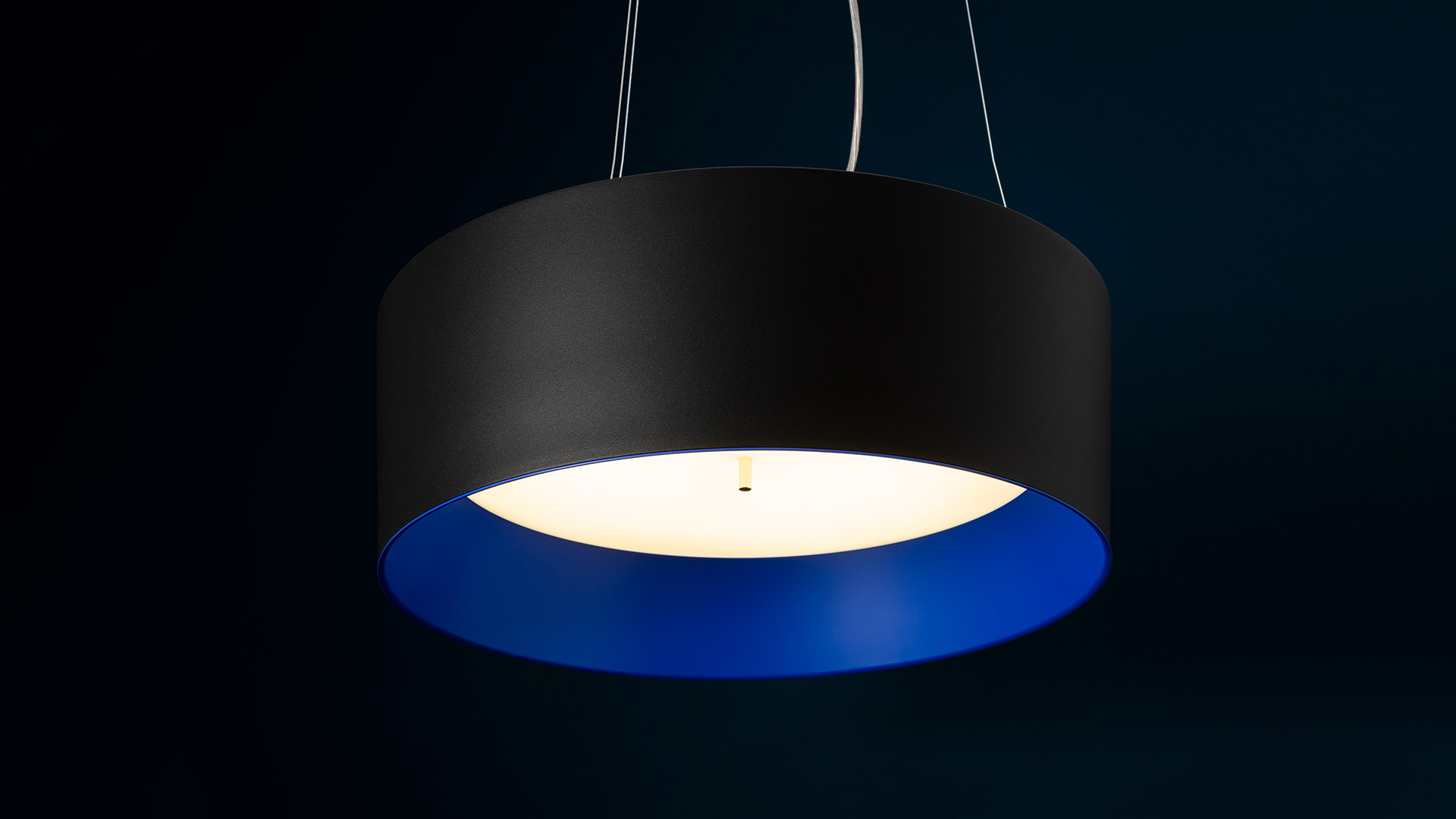

Tagora Suspension 570

Series of suspended luminaires available in 4 diameters (80 mm, 270 mm, 570 mm, 970 mm), using high-output LEDs, Retrofit LEDs, 12V halogen lamps, metal halide and fluorescent sources.Aluminium body available in different two-coloured versions: beige/white, grey/white, black/orange, black/vert and black/blue.Steel suspension cables allowing quick adjustment, 2 metre length.Tagora 80 and 270 offer a high-output spot light with aluminium optics. 2 beam angles for LED versions and 3 for HIT versions.Tagora 270 LED uses a proprietary system based on a hybrid combined lens and reflector optic. This system helps to create defined narrow beams using high-powered LED modules of large dimensions.Tagora 570 and 970 come with a PMMA diffuser, offering a comfortable diffused light. LED versions use high-output sources.Monochromatic LED option with warm white (3000 K) and neutral white (4000 K) tones.Integrated electronic power supply, dimmable or non-dimmable options, depending on the version. Emergency lighting available on Tagora 570 fluorescent option.Option of double light emission available on Tagora 570 and 970 fluorescent modules.Compliant with standard EN60598-1 and other specific standards.

Product overview

light emission

colour

watt

delivered lumens output (lm)

cct

20 Codes found

code Watt lm CCT
Tagora Suspension 570 - Direct+Indirect Emission - LED 3000K Dali-SwitchDim - Black/Blue
M240231 72W 4675lm 3000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 3000K Dali-SwitchDim - Black/Green
M240241 72W 4675lm 3000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 3000K Dali-SwitchDim - Black/Orange
M240211 72W 4675lm 3000K
M249261 - Tagora Suspension 570 - Direct+Indirect Emission - LED 3000K Dali-SwitchDim - Gray/White
M240261 72W 4675lm 3000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 4000K Dali-SwitchDim - Beige/White
M240321 72W 4944lm 4000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 4000K Dali-SwitchDim - Black/Blue
M240331 72W 4944lm 4000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 4000K Dali-SwitchDim - Black/Green
M240341 72W 4944lm 4000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 4000K Dali-SwitchDim - Black/Orange
M240311 72W 4944lm 4000K
Tagora Suspension 570 - Direct+Indirect Emission - LED 4000K Dali-SwitchDim - Gray/White
M240361 72W 4944lm 4000K
Tagora Suspension 570 -Direct+Indirect Emission - LED 3000K Dali-SwitchDim - Beige/White
M240221 72W 4675lm 3000K
Tagora Suspension 570 - Direct emission - LED 3000K Dali-SwitchDim - Beige/White
M249221 58W 3593lm 3000K
Tagora Suspension 570 - Direct emission - LED 3000K Dali-SwitchDim - Black/Blue
M249231 58W 3593lm 3000K
Tagora Suspension 570 - Direct emission - LED 3000K Dali-SwitchDim - Black/Green
M249241 58W 3593lm 3000K
Tagora Suspension 570 - Direct emission - LED 3000K Dali-SwitchDim - Black/Orange
M249211 58W 3593lm 3000K
Tagora Suspension 570 - Direct emission - LED 3000K Dali-SwitchDim - Gray/White
M249261 58W 3593lm 3000K
Tagora Suspension 570 - Direct emission - LED 4000K Dali-SwitchDim - Beige/White
M249321 58W 3820lm 4000K
Tagora Suspension 570 - Direct emission - LED 4000K Dali-SwitchDim - Black/Blue
M249331 58W 3820lm 4000K
Tagora Suspension 570 - Direct emission - LED 4000K Dali-SwitchDim - Black/Green
M249341 58W 3820lm 4000K
Tagora Suspension 570 - Direct emission - LED 4000K Dali-SwitchDim - Black/Orange
M249311 58W 3820lm 4000K
Tagora Suspension 570 - Direct emission - LED 4000K Dali-SwitchDim - Gray/White
M249361 58W 3820lm 4000K
