Ego

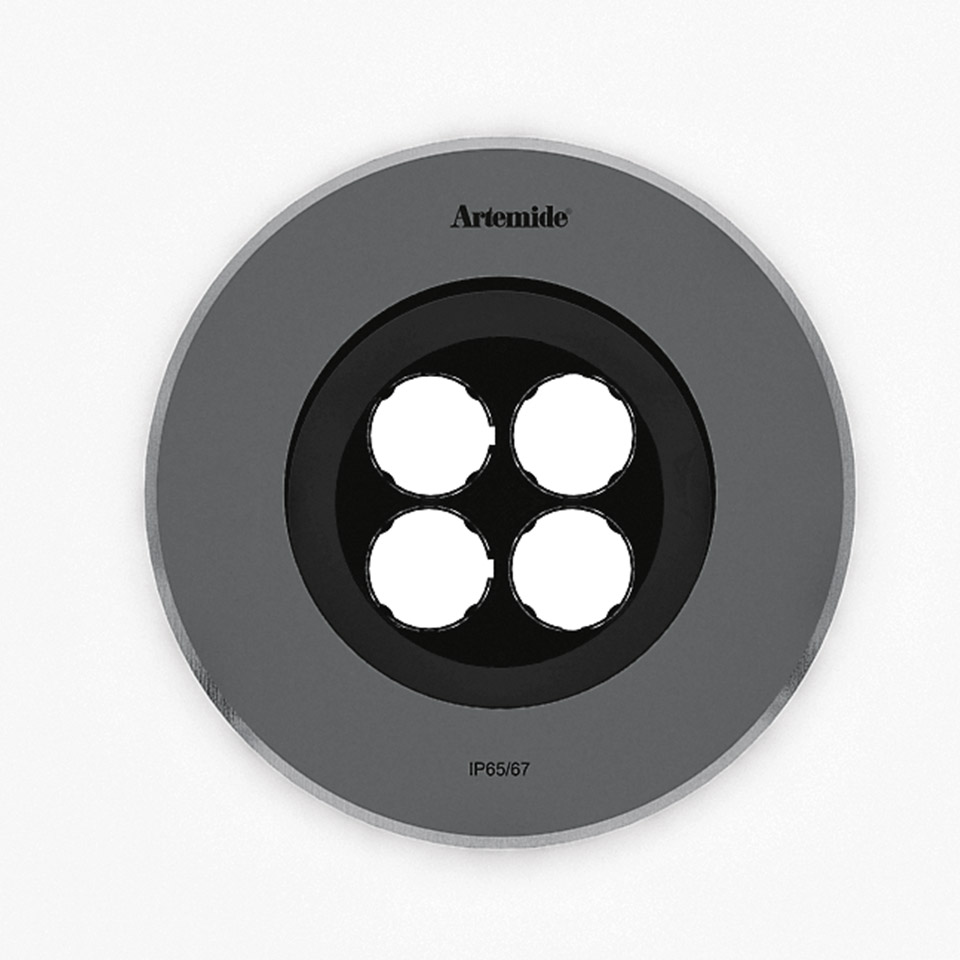

150 downlight

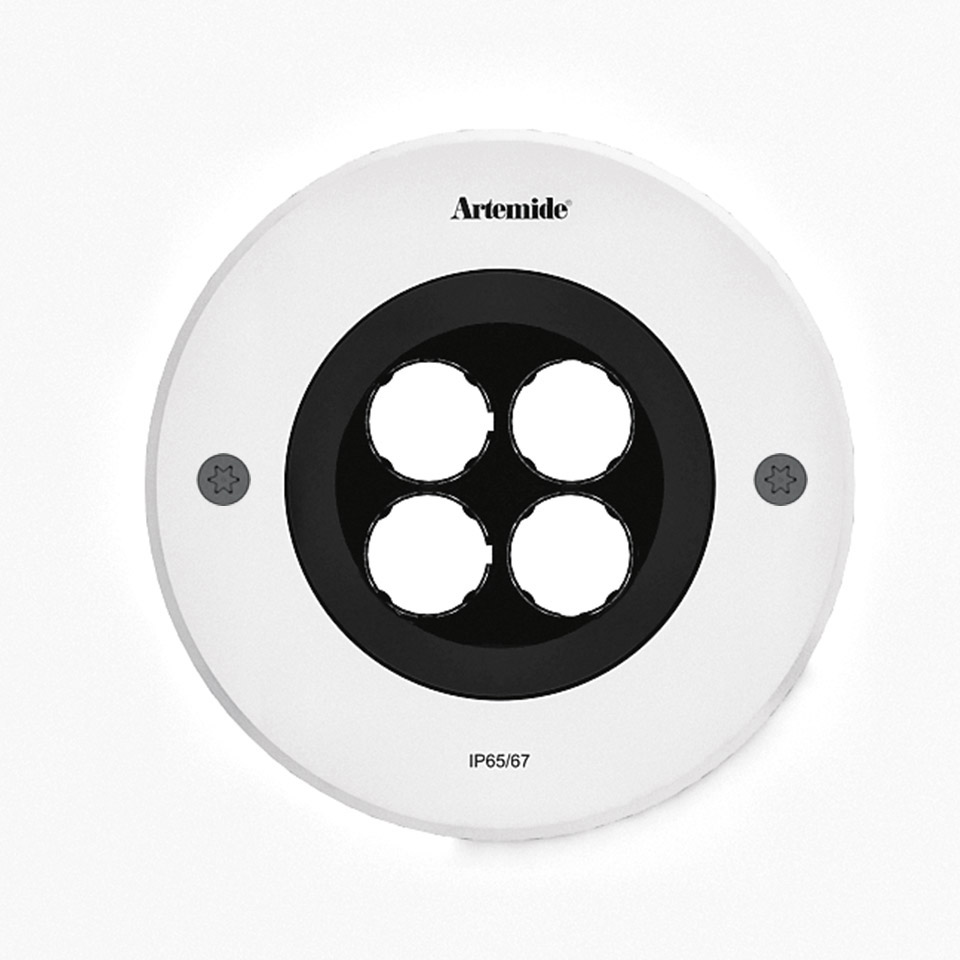

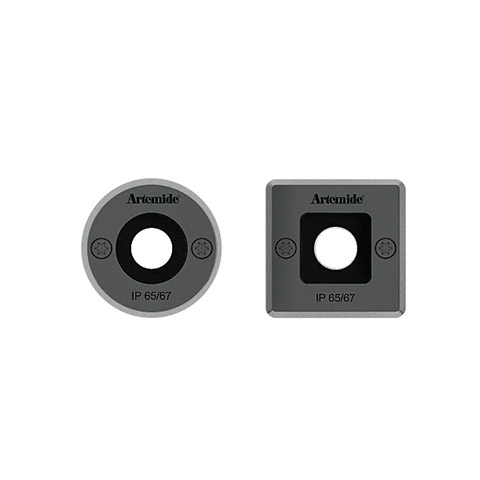

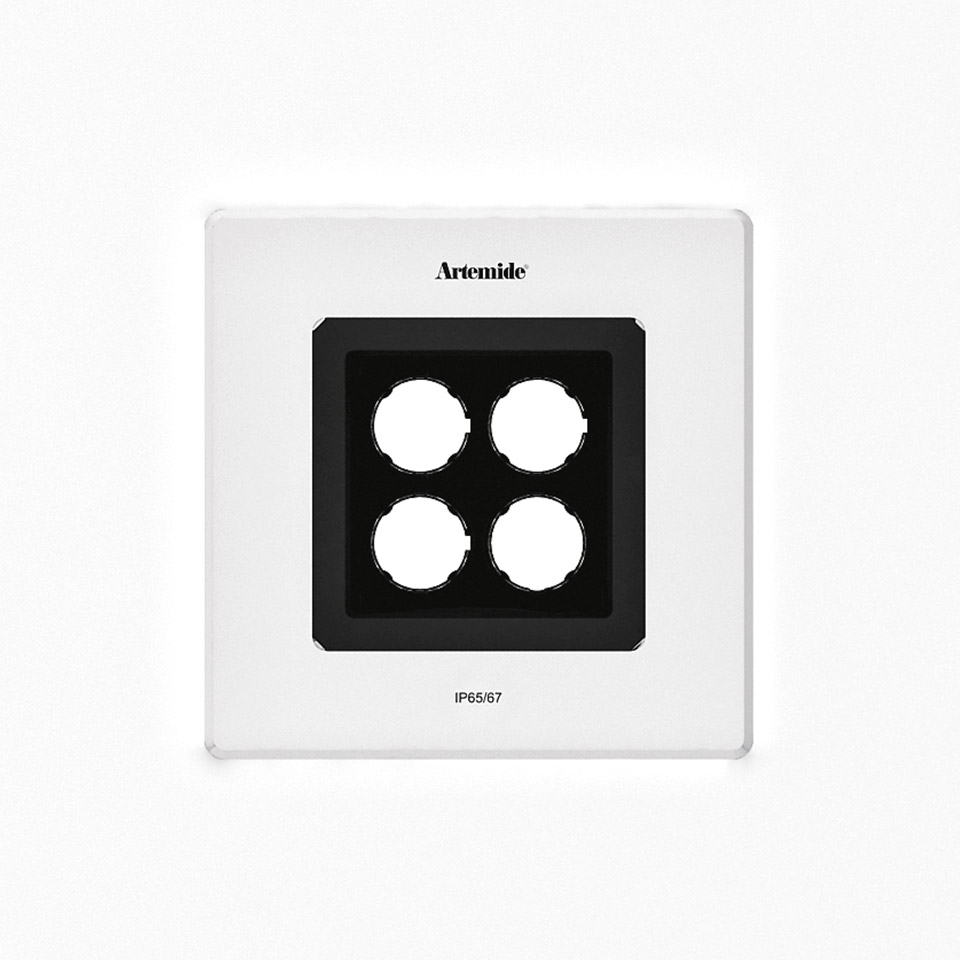

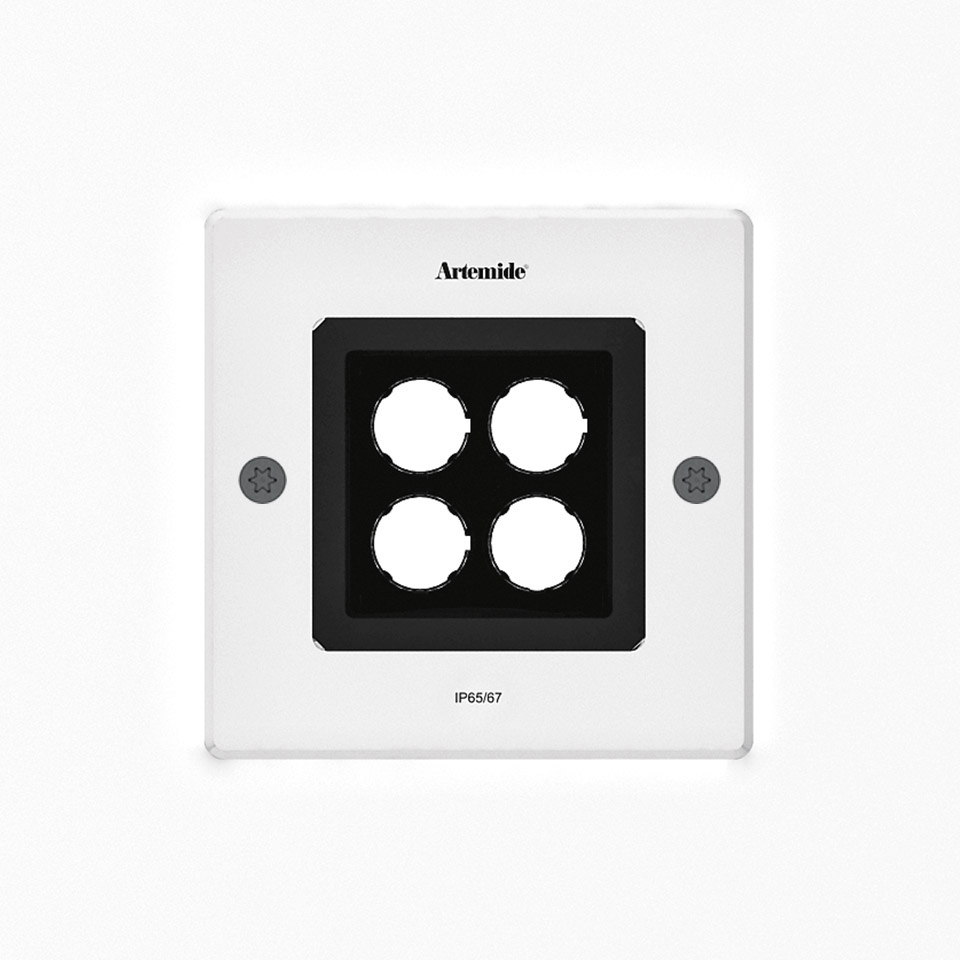

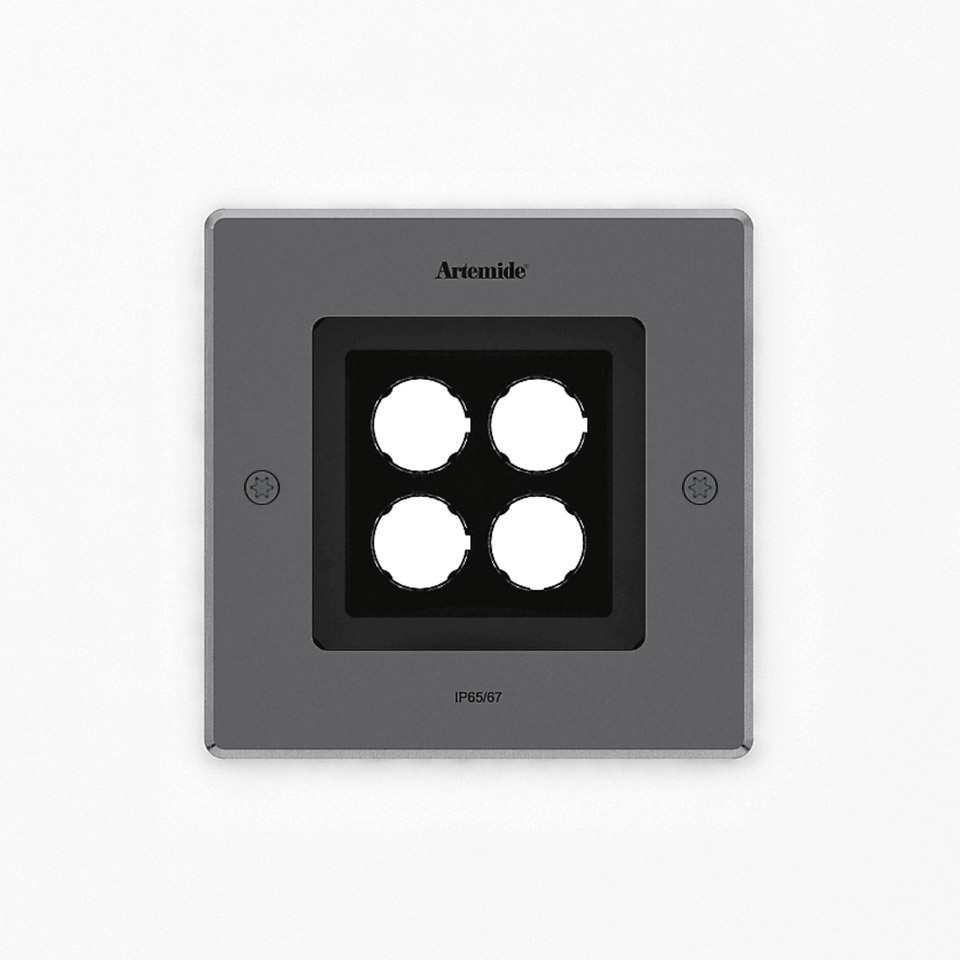

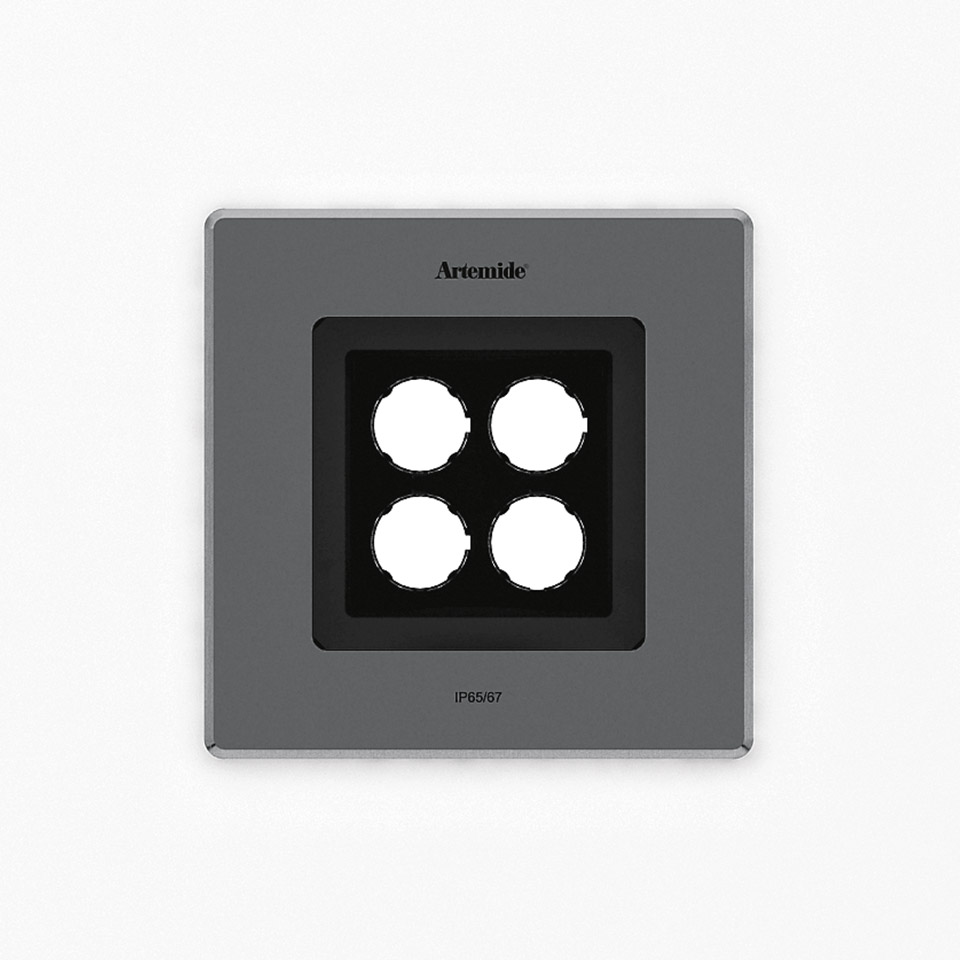

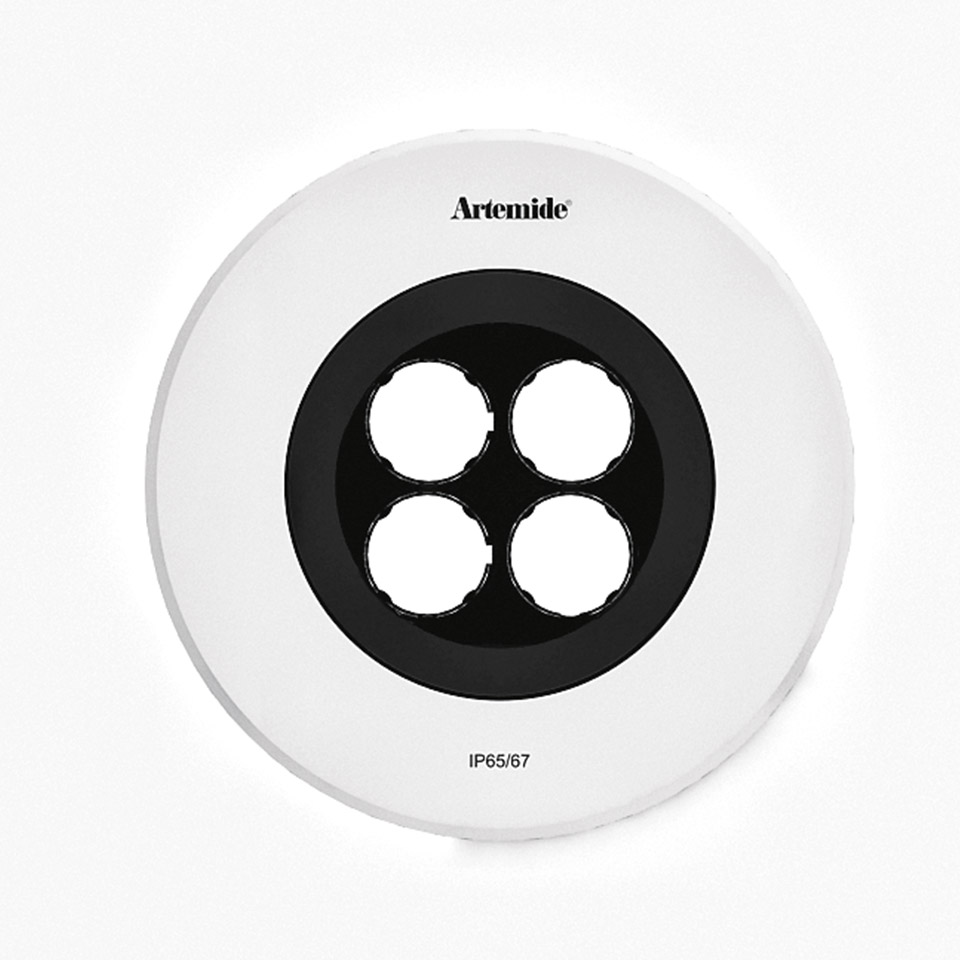

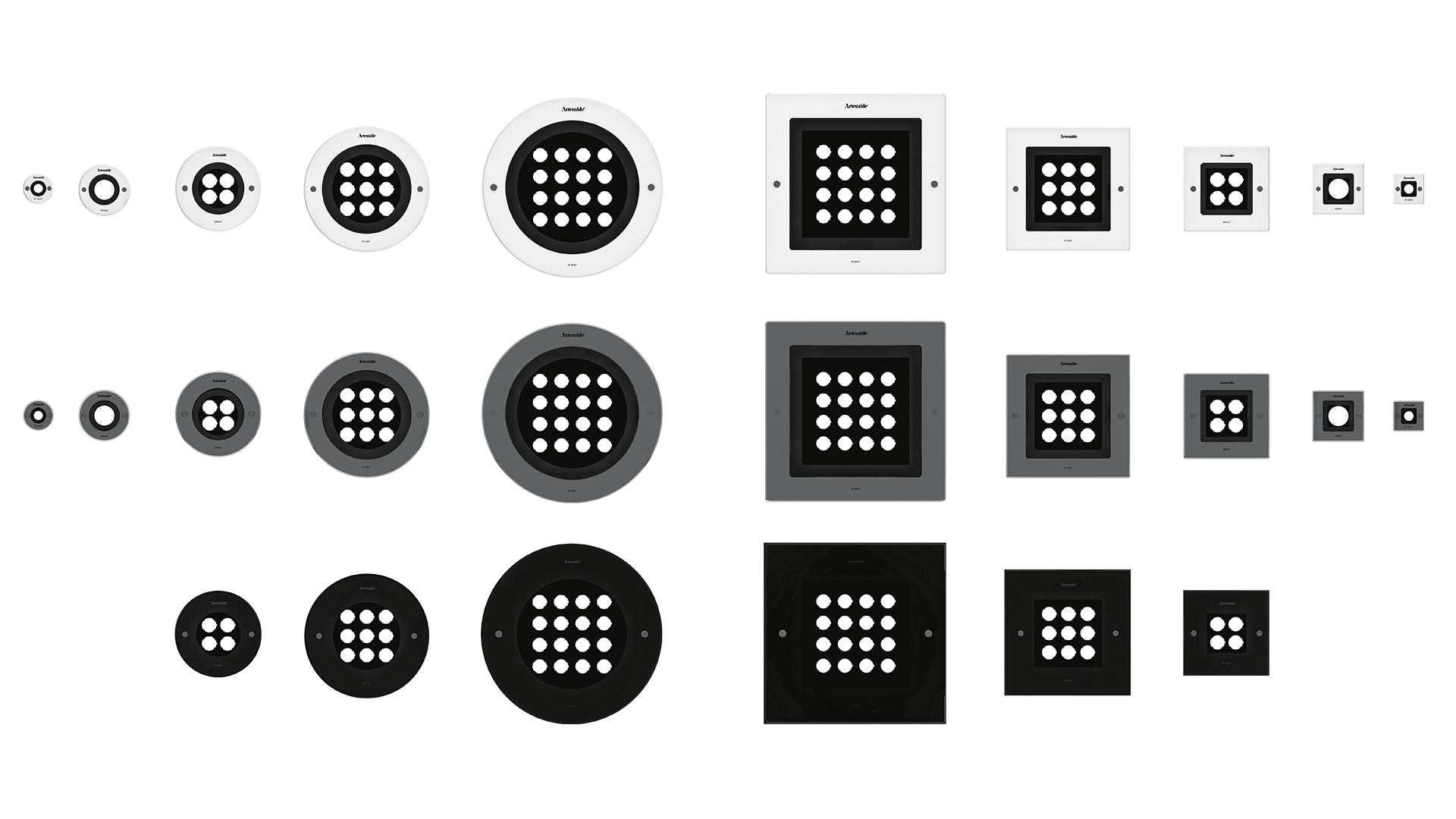

Light fixture with high-performance LED light sources. Ceiling installation. Two different housing depths. Round and square version in five sizes. Consists of body, frame, black silkscreened tempered glass, fixing springs. Body in EN AB44100 aluminium, silicone gaskets. Frame in aluminium or stainless
steel AISI 316. Black silkscreened tempered glass, 8mm-thick. Fixing springs in harmonic iron. Power connection to the mains by means of a H05RN-r cabl and IP68 electrical terminal board, supplied with the fixture. Glass surface temperature lower than 40°C. Fixed or adjustable optics. PMMA lenses in 3 different versions of beams. White monochromatic LEDs available in 2 colour temperatures Warm = 3000K Neutral = 4000K Painted die-cast aluminium with 3-stage outdoortreatment: nanotechnologies, anti-oxidant primer, polyester paint. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65. Insulation class III. Installation must be carried out by specialized personnel. Carefully follow the instructions.
Light fixture with high-performance LED light sources. Ceiling installation. Two different housing depths. Round and square version in five sizes. Consists of body, frame, black silkscreened tempered glass, fixing springs. Body in EN AB44100 aluminium, silicone gaskets. Frame in aluminium or stainless

Product overview

material

variant

beam

watt

delivered lumens output

Technical characteristics
Product name Code Watt Lm CCT Save
Ego 150 downlight Square 38° 3000K Inox IK09 Ego 150 downlight Square 38° 3000K Inox IK09 T4064WFLW00 8W 321lm 3000K
Ego 150 downlight Square 5° 3000K Inox IK09 Ego 150 downlight Square 5° 3000K Inox IK09 T4064NSPW00 8W 366lm 3000K
Ego 150 downlight Square EL 3000K Inox IK09 Ego 150 downlight Square EL 3000K Inox IK09 T4064ELPTW00 8W 366lm 3000K
Ego Flat 150 downlight Square 38° 3000K Inox IK09 Ego Flat 150 downlight Square 38° 3000K Inox IK09 T42014WFLW00 6.3W 321lm 3000K
Ego Flat 150 downlight Square 5° 3000K Inox IK09 Ego Flat 150 downlight Square 5° 3000K Inox IK09 T42014NSPW00 6.3W 366lm 3000K
Ego Flat 150 downlight Square EL 3000K Inox IK09 Ego Flat 150 downlight Square EL 3000K Inox IK09 T42014ELPTW00 6.3W 366lm 3000K
Ego 150 downlight Square 38° 3000K Aluminium IK09 Ego 150 downlight Square 38° 3000K Aluminium IK09 T4065WFLW00 8W 321lm 3000K
Ego 150 downlight Square 5° 3000K Aluminium IK09 Ego 150 downlight Square 5° 3000K Aluminium IK09 T4065NSPW00 8W 366lm 3000K
Ego 150 downlight Square EL 3000K Aluminium IK09 Ego 150 downlight Square EL 3000K Aluminium IK09 T4065ELPTW00 8W 366lm 3000K
Ego Flat 150 downlight Square 38° 3000K Aluminium IK09 Ego Flat 150 downlight Square 38° 3000K Aluminium IK09 T42006WFLW00 6.3W 321lm 3000K
Ego Flat 150 downlight Square 5° 3000K Aluminium IK09 Ego Flat 150 downlight Square 5° 3000K Aluminium IK09 T42006NSPW00 6.3W 366lm 3000K
Ego Flat 150 downlight Square EL 3000K Aluminium IK09 Ego Flat 150 downlight Square EL 3000K Aluminium IK09 T42006ELPTW00 6.3W 366lm 3000K
Ego 150 downlight Round 38° 3000K Inox IK09 Ego 150 downlight Round 38° 3000K Inox IK09 T4084WFLW00 8W 321lm 3000K
Ego 150 downlight Round 5° 3000K Inox IK09 Ego 150 downlight Round 5° 3000K Inox IK09 T4084NSPW00 8W 366lm 3000K
Ego 150 downlight Round EL 3000K Inox IK09 Ego 150 downlight Round EL 3000K Inox IK09 T4084ELPTW00 8W 366lm 3000K
Ego Flat 150 downlight Round 38° 3000K Inox IK09 Ego Flat 150 downlight Round 38° 3000K Inox IK09 T42013WFLW00 6.3W 321lm 3000K
Ego Flat 150 downlight Round 5° 3000K Inox IK09 Ego Flat 150 downlight Round 5° 3000K Inox IK09 T42013NSPW00 6.3W 366lm 3000K
Ego Flat 150 downlight Round EL 3000K Inox IK09 Ego Flat 150 downlight Round EL 3000K Inox IK09 T42013ELPTW00 6.3W 366lm 3000K
Ego 150 downlight Round 38° 3000K Aluminium IK09 Ego 150 downlight Round 38° 3000K Aluminium IK09 T4085WFLW00 8W 321lm 3000K
Ego 150 downlight Round 5° 3000K Aluminium IK09 Ego 150 downlight Round 5° 3000K Aluminium IK09 T4085NSPW00 8W 366lm 3000K
Ego 150 downlight Round EL 3000K Aluminium IK09 Ego 150 downlight Round EL 3000K Aluminium IK09 T4085ELPTW00 8W 366lm 3000K
Ego Flat 150 downlight Round 38° 3000K Aluminium IK09 Ego Flat 150 downlight Round 38° 3000K Aluminium IK09 T42005WFLW00 6.3W 321lm 3000K
Ego Flat 150 downlight Round 5° 3000K Aluminium IK09 Ego Flat 150 downlight Round 5° 3000K Aluminium IK09 T42005NSPW00 6.3W 366lm 3000K
Ego Flat 150 downlight Round EL 3000K Aluminium IK09 Ego Flat 150 downlight Round EL 3000K Aluminium IK09 T42005ELPTW00 6.3W 366lm 3000K
Product name
Code
Watt
Lm
CCT
Save
Ego 150 downlight Square 38° 3000K Inox IK09
Ego 150 downlight Square 38° 3000K Inox IK09
8W
321lm
3000K
Ego 150 downlight Square 5° 3000K Inox IK09
Ego 150 downlight Square 5° 3000K Inox IK09
8W
366lm
3000K
Ego 150 downlight Square EL 3000K Inox IK09
Ego 150 downlight Square EL 3000K Inox IK09
8W
366lm
3000K
Ego Flat 150 downlight Square 38° 3000K Inox IK09
Ego Flat 150 downlight Square 38° 3000K Inox IK09
6.3W
321lm
3000K
Ego Flat 150 downlight Square 5° 3000K Inox IK09
Ego Flat 150 downlight Square 5° 3000K Inox IK09
6.3W
366lm
3000K
Ego Flat 150 downlight Square EL 3000K Inox IK09
Ego Flat 150 downlight Square EL 3000K Inox IK09
6.3W
366lm
3000K
Ego 150 downlight Square 38° 3000K Aluminium IK09
Ego 150 downlight Square 38° 3000K Aluminium IK09
8W
321lm
3000K
Ego 150 downlight Square 5° 3000K Aluminium IK09
Ego 150 downlight Square 5° 3000K Aluminium IK09
8W
366lm
3000K
Ego 150 downlight Square EL 3000K Aluminium IK09
Ego 150 downlight Square EL 3000K Aluminium IK09
8W
366lm
3000K
Ego Flat 150 downlight Square 38° 3000K Aluminium IK09
Ego Flat 150 downlight Square 38° 3000K Aluminium IK09
6.3W
321lm
3000K
Ego Flat 150 downlight Square 5° 3000K Aluminium IK09
Ego Flat 150 downlight Square 5° 3000K Aluminium IK09
6.3W
366lm
3000K
Ego Flat 150 downlight Square EL 3000K Aluminium IK09
Ego Flat 150 downlight Square EL 3000K Aluminium IK09
6.3W
366lm
3000K
Ego 150 downlight Round 38° 3000K Inox IK09
Ego 150 downlight Round 38° 3000K Inox IK09
8W
321lm
3000K
Ego 150 downlight Round 5° 3000K Inox IK09
Ego 150 downlight Round 5° 3000K Inox IK09
8W
366lm
3000K
Ego 150 downlight Round EL 3000K Inox IK09
Ego 150 downlight Round EL 3000K Inox IK09
8W
366lm
3000K
Ego Flat 150 downlight Round 38° 3000K Inox IK09
Ego Flat 150 downlight Round 38° 3000K Inox IK09
6.3W
321lm
3000K
Ego Flat 150 downlight Round 5° 3000K Inox IK09
Ego Flat 150 downlight Round 5° 3000K Inox IK09
6.3W
366lm
3000K
Ego Flat 150 downlight Round EL 3000K Inox IK09
Ego Flat 150 downlight Round EL 3000K Inox IK09
6.3W
366lm
3000K
Ego 150 downlight Round 38° 3000K Aluminium IK09
Ego 150 downlight Round 38° 3000K Aluminium IK09
8W
321lm
3000K
Ego 150 downlight Round 5° 3000K Aluminium IK09
Ego 150 downlight Round 5° 3000K Aluminium IK09
8W
366lm
3000K
Ego 150 downlight Round EL 3000K Aluminium IK09
Ego 150 downlight Round EL 3000K Aluminium IK09
8W
366lm
3000K
Ego Flat 150 downlight Round 38° 3000K Aluminium IK09
Ego Flat 150 downlight Round 38° 3000K Aluminium IK09
6.3W
321lm
3000K
Ego Flat 150 downlight Round 5° 3000K Aluminium IK09
Ego Flat 150 downlight Round 5° 3000K Aluminium IK09
6.3W
366lm
3000K
Ego Flat 150 downlight Round EL 3000K Aluminium IK09
Ego Flat 150 downlight Round EL 3000K Aluminium IK09
6.3W
366lm
3000K
