Spike

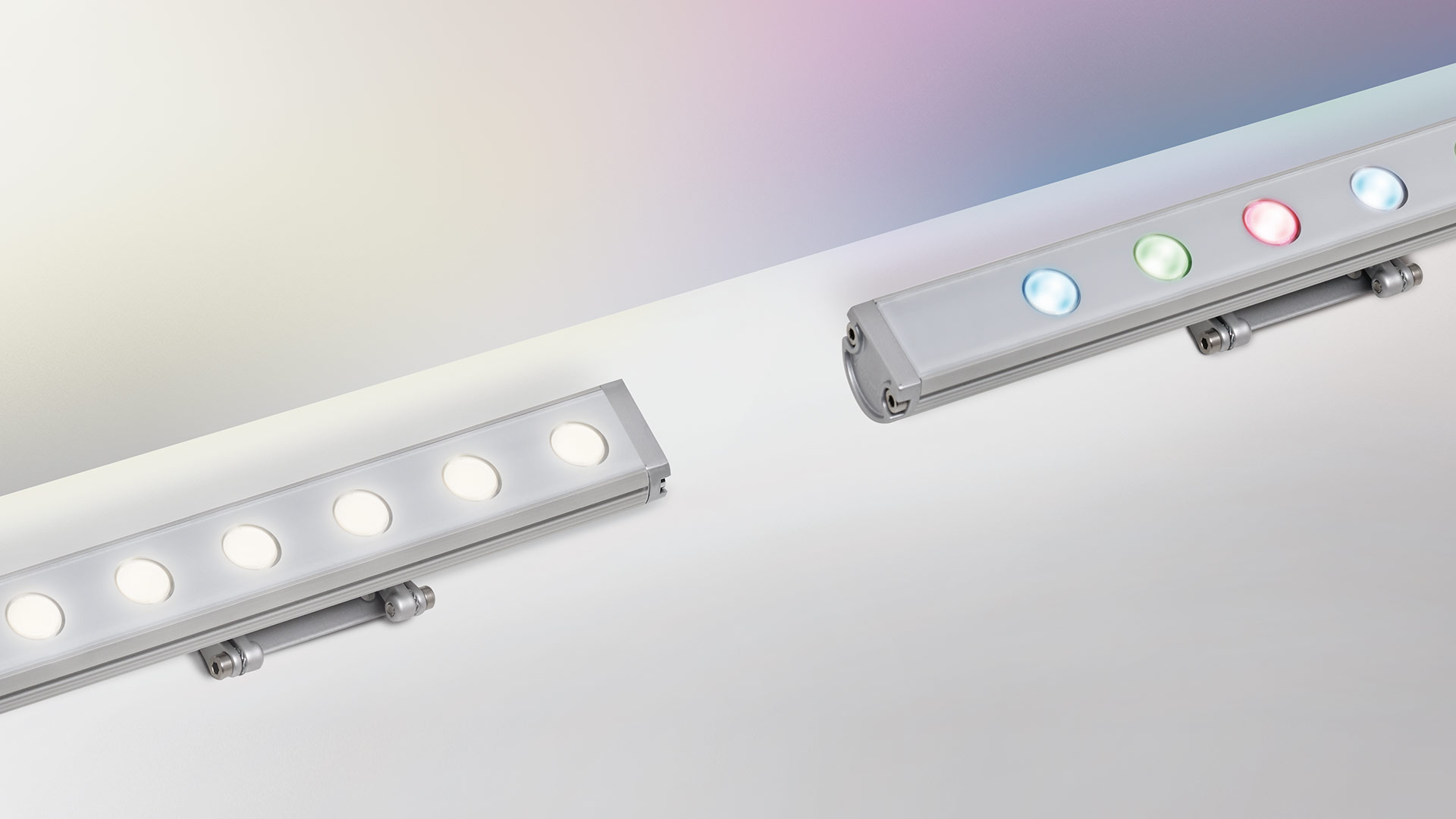

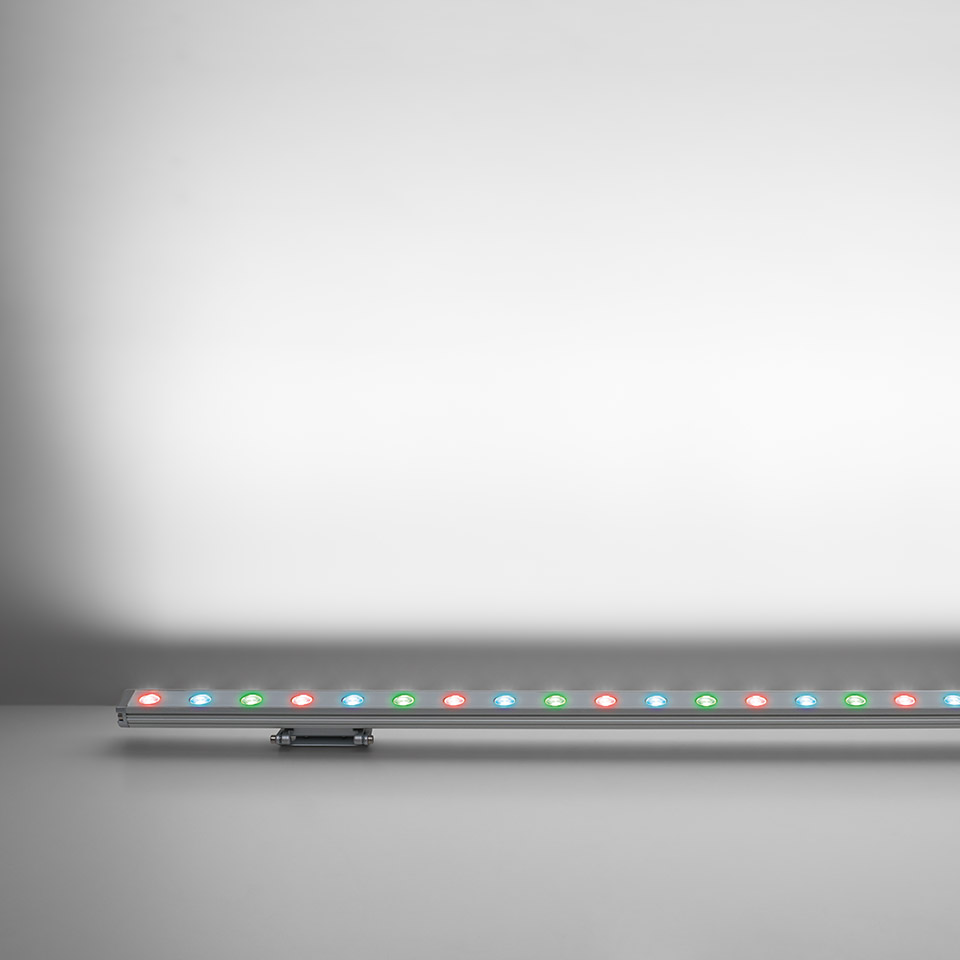

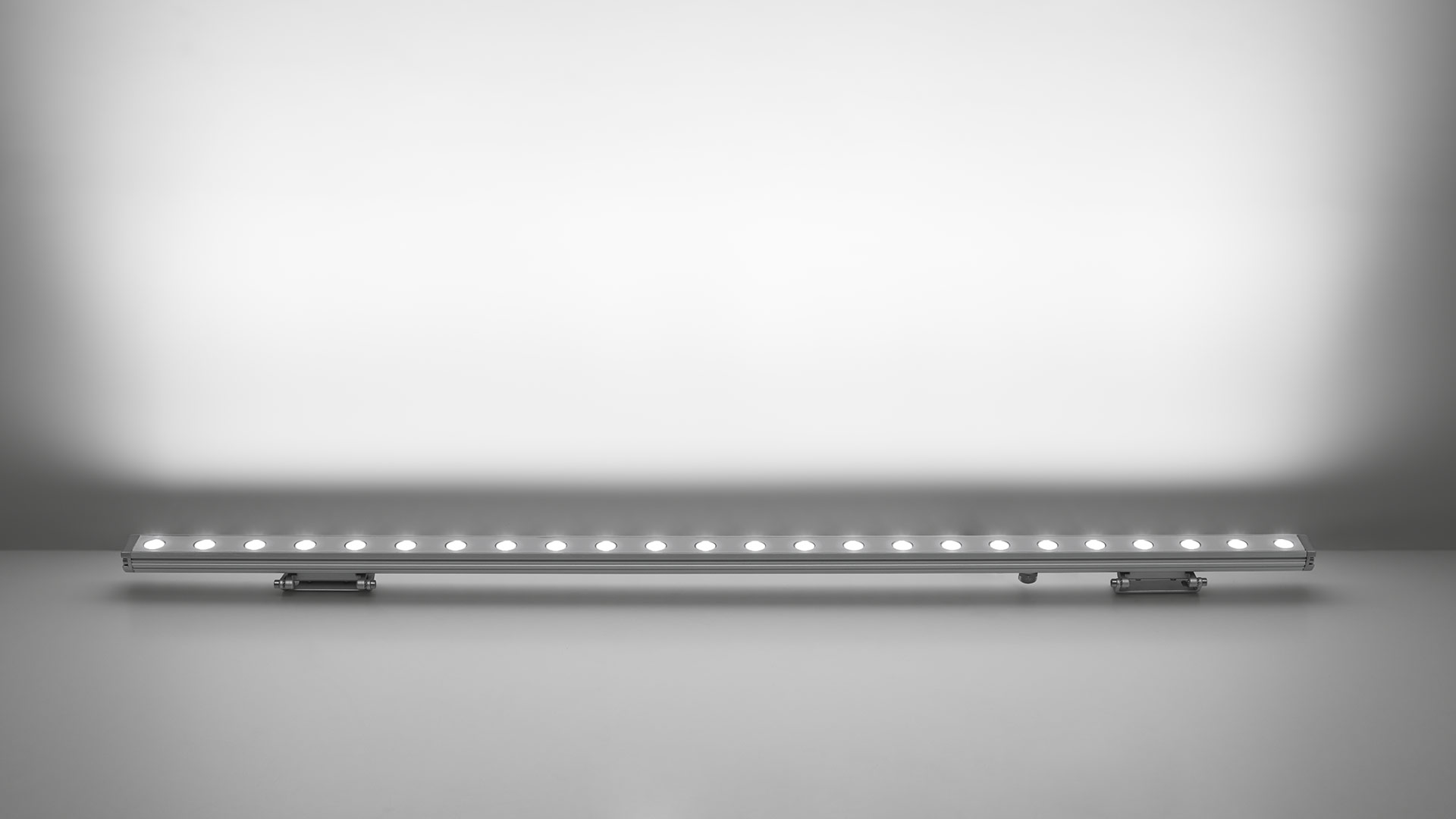

Light fixture with high-performance LED light sources.Wall/ceiling installation. Monochromatic version or RGB version.Body in extruded EN AW6060 T5 aluminium.Diffuser in 3mm-thick transparent metacrylate PMMA.Diffuser in 1,5mm-thick transparent polycarbonate.Stoppers in die-cast aluminium with

silicone gasket.Adjustable brackets in aluminium. Electrical connection to the ballast by means of a H05RN-F (monochrome) or a 4-poles sylicon/rubber cable (RGB), with IP68 terminal board supplied with the fixture (IP65 version).24Vdc remote ballast.Painted profile with 2-stage outdoor treatment: primer, outdoor paint.Antidazzle screen in painted extruded aluminium, upon request.Optics. PMMA lenses in 3 different versions of beams. White monochromatic LEDs available in 2 colour temperatures:Warm = 3000KNeutral = 4000KRGB version with red, green and blue monochromatic LEDs.IP Rating IP65. Insulation class III.Technical features of light fixtures in compliance with EN60598-1.Installation must be carried out by specialized personnel.

Product overview

light source

beam

length

watt

delivered lumens output

Technical characteristics
Product name Code Watt Lm CCT Colour Save
Spike RGB - 10° Spike RGB - 10° NL5003110C002 25,2W
Spike RGB - 25° Spike RGB - 25° NL5003130C002 25,2W
Spike RGB - 40° Spike RGB - 40° NL5003140C002 25,2W
Spike RGB - EL Spike RGB - EL NL50031ELC002 25,2W
Spike 12W - 13° 3000K Spike 12W - 13° 3000K T430010W00 12W 594lm 3000K
Spike 12W - 27° 3000K Spike 12W - 27° 3000K T430025W00 12W 554lm 3000K
Spike 12W - EL 3000K Spike 12W - EL 3000K T4300ELW00 12W 594lm 3000K
Spike 24W - 13° 3000K Spike 24W - 13° 3000K T430110W00 24W 1188lm 3000K
Spike 24W - 27° 3000K Spike 24W - 27° 3000K T430125W00 24W 1108lm 3000K
Spike 24W - EL 3000K Spike 24W - EL 3000K T4301ELW00 24W 1188lm 3000K
Spike 36W - 13° 3000K Spike 36W - 13° 3000K T430210W00 36W 1782lm 3000K
Spike 36W - 27° 3000K Spike 36W - 27° 3000K T430225W00 36W 1662lm 3000K
Spike 36W - EL 3000K Spike 36W - EL 3000K T4302ELW00 36W 1782lm 3000K
Spike 48W - 13° 3000K Spike 48W - 13° 3000K T430310W00 48W 2376lm 3000K
Spike 48W - 27° 3000K Spike 48W - 27° 3000K T430325W00 48W 2216lm 3000K
Spike 48W - EL 3000K Spike 48W - EL 3000K T4303ELW00 48W 2376lm 3000K
Product name
Code
Watt
Lm
CCT
Colour
Save
Spike RGB - 10°
Spike RGB - 10°
25,2W
Spike RGB - 25°
Spike RGB - 25°
25,2W
Spike RGB - 40°
Spike RGB - 40°
25,2W
Spike RGB - EL
Spike RGB - EL
25,2W
Spike 12W - 13° 3000K
Spike 12W - 13° 3000K
12W
594lm
3000K
Spike 12W - 27° 3000K
Spike 12W - 27° 3000K
12W
554lm
3000K
Spike 12W - EL 3000K
Spike 12W - EL 3000K
12W
594lm
3000K
Spike 24W - 13° 3000K
Spike 24W - 13° 3000K
24W
1188lm
3000K
Spike 24W - 27° 3000K
Spike 24W - 27° 3000K
24W
1108lm
3000K
Spike 24W - EL 3000K
Spike 24W - EL 3000K
24W
1188lm
3000K
Spike 36W - 13° 3000K
Spike 36W - 13° 3000K
36W
1782lm
3000K
Spike 36W - 27° 3000K
Spike 36W - 27° 3000K
36W
1662lm
3000K
Spike 36W - EL 3000K
Spike 36W - EL 3000K
36W
1782lm
3000K
Spike 48W - 13° 3000K
Spike 48W - 13° 3000K
48W
2376lm
3000K
Spike 48W - 27° 3000K
Spike 48W - 27° 3000K
48W
2216lm
3000K
Spike 48W - EL 3000K
Spike 48W - EL 3000K
48W
2376lm
3000K
contact us for more information
