Tagora
Ceiling 570

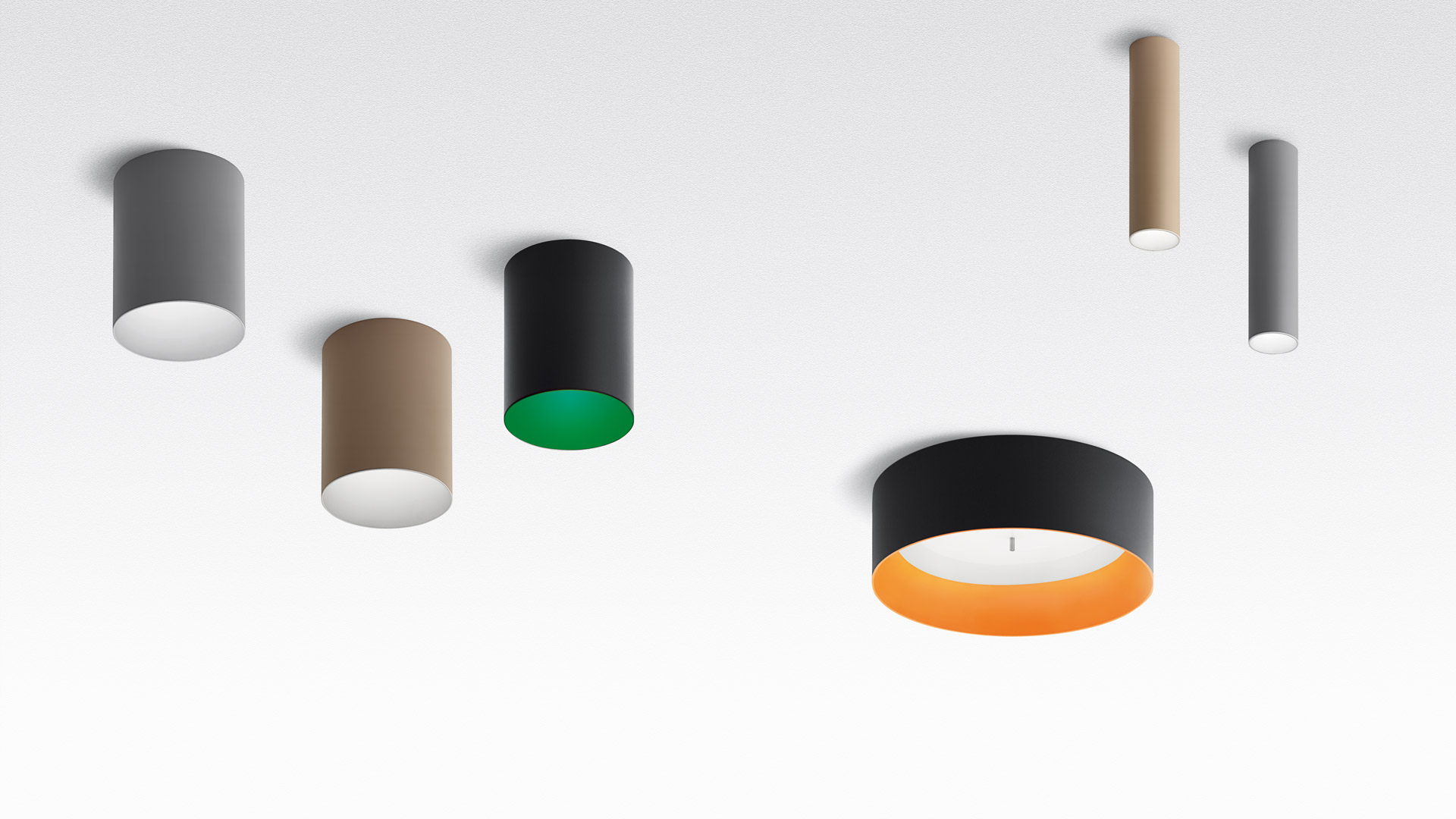

Series of ceiling mounted luminaires available in 4 diameters (80 mm, 270 mm, 570 mm, 970 mm), using high-output LEDs, Retrofit LEDs.  Aluminium body available in different two-coloured versions: beige/white, grey/white, black/orange, black/vert and black/blue.  Tagora 80 and 270 offer a high-output

spot light with aluminium optics.  Tagora 270 uses a proprietary system based on a hybrid combined lens and reflector optic. This system helps to create defined narrow beams using high-powered LED modules of large dimensions.  Tagora 570 and 970 come with a PMMA diffuser, offering a comfortable diffused light. LED versions use high-output sources.  Integrated electronic power supply, dimmable or non-dimmable options, depending on the version. Only ceiling mounted installation allowed. Compliant with standard EN60598-1 and other specific standards.

Product overview

Technical characteristics

Product name	Code	Watt	Lm	CCT
Tagora Ceiling 570 - LED 3000K - Dali SwitchDim - Beige/White	M248221	58W	3593lm	3000K
Tagora Ceiling 570 - LED 3000K - Dali SwitchDim - Black/Blue	M248231	58W	3593lm	3000K
Tagora Ceiling 570 - LED 3000K - Dali SwitchDim - Black/Green	M248241	58W	3593lm	3000K
Tagora Ceiling 570 - LED 3000K - Dali SwitchDim - Black/Orange	M248211	58W	3593lm	3000K
Tagora Ceiling 570 - LED 3000K - Dali SwitchDim - Grey/White	M248261	58W	3593lm	3000K
Tagora Ceiling 570 - LED 4000K - Dali SwitchDim - Beige/White	M248321	58W	3820lm	4000K
Tagora Ceiling 570 - LED 4000K - Dali SwitchDim - Black/Blue	M248331	58W	3820lm	4000K
Tagora Ceiling 570 - LED 4000K - Dali SwitchDim - Black/Green	M248341	58W	3820lm	4000K
Tagora Ceiling 570 - LED 4000K - Dali SwitchDim - Black/Orange	M248311	58W	3820lm	4000K
Tagora Ceiling 570 - LED 4000K - Dali SwitchDim - Grey/White	M248361	58W	3820lm	4000K
