Ego 90 downlight

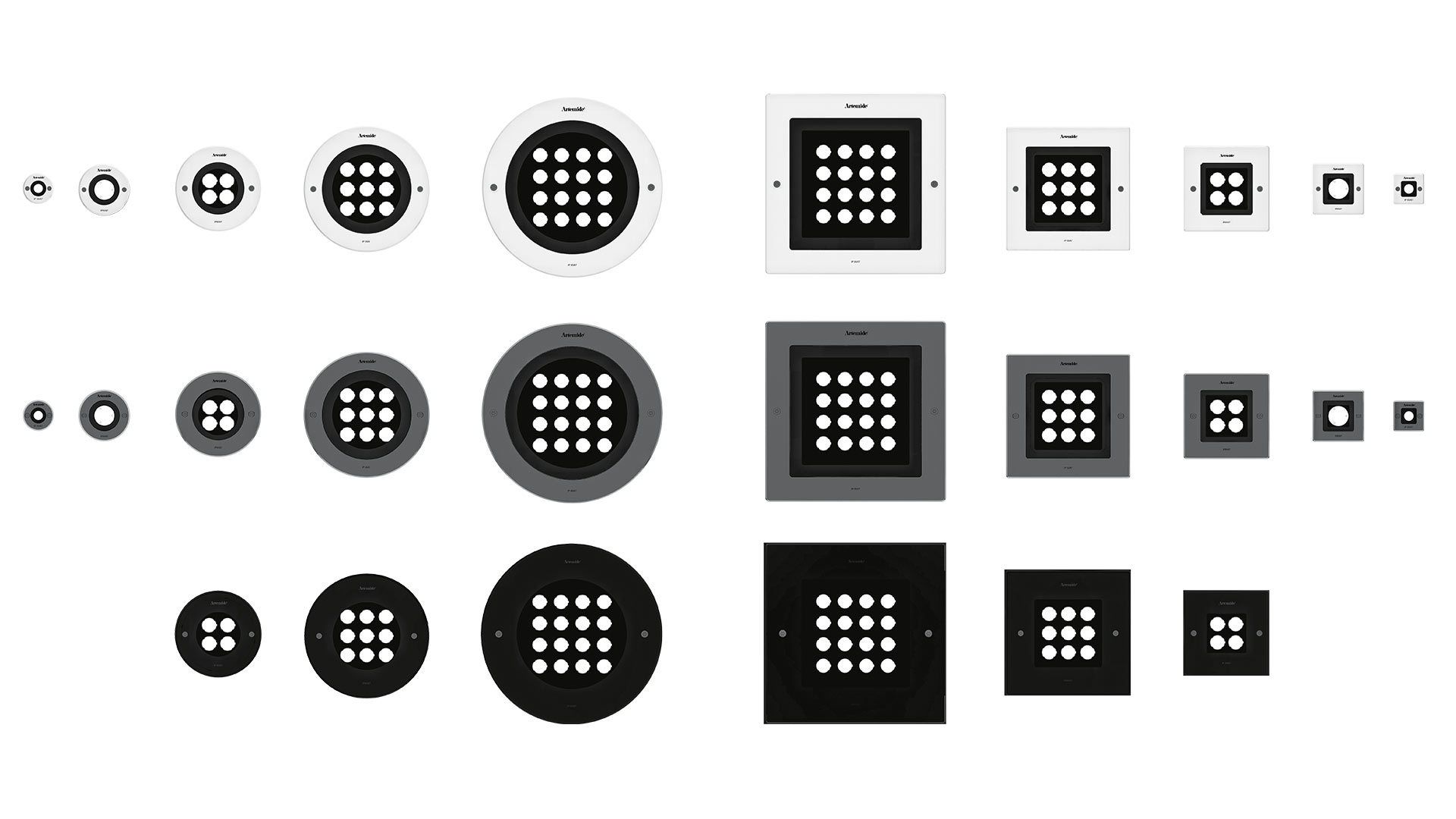

Light fixture with high-performance LED light sources. Ceiling installation. Two different housing depths. Round and square version in five sizes. Consists of body, frame, black silkscreened tempered glass, fixing springs. Body in EN AB44100 aluminium, silicone gaskets. Frame in aluminium or stainless steel AISI 316. Black silkscreened tempered glass, 8mm-thick. Fixing springs in harmonic iron. Power connection to the mains by means of a H05RN-r cabl and IP68 electrical terminal board, supplied with the fixture. Glass surface temperature lower than 40°C. Fixed or adjustable optics. PMMA lenses in 3 different versions of beams. White monochromatic LEDs available in 2 colour temperatures Warm = 3000K Neutral = 4000K Painted die-cast aluminium with 3-stage outdoortreatment: nanotechnologies, anti-oxidant primer, polyester paint. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65. Insulation class III. Installation must be carried out by specialized personnel. Carefully follow the instructions.

Product overview

variant

material

beam

watt

delivered lumens output (lm)

24 Codes found

code Watt lm CCT
Ego 90 downlight Square 10° 3000K Inox IK10
T4062SPW00 3.5W 220lm 3000K
Ego 90 downlight Square 24° 3000K Inox IK10
T4063FLW00 3.5W 179lm 3000K
Ego 90 downlight Square EL 3000K Inox IK10
T4062ELPTW00 3.5W 162lm 3000K
Ego Flat 90 downlight Square 10° 3000K Inox IK10
T42012SPW00 3.2W 220lm 3000K

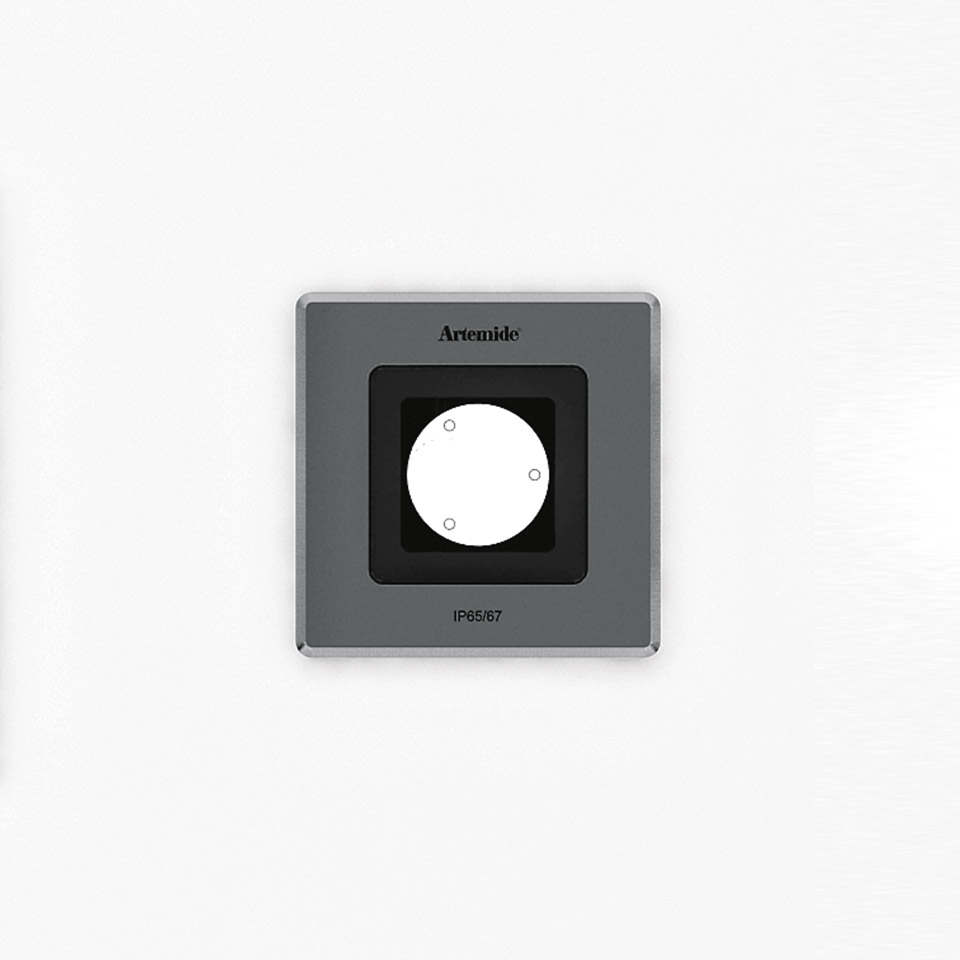

Ego Flat 90 downlight Square 24° 3000K Inox IK10
T42012FLW00 3.2W 179lm 3000K
Ego Flat 90 downlight Square EL 3000K Inox IK10
T42012ELPTW00 3.2W 162lm 3000K
Ego 90 downlight Square 10° 3000K Aluminium IK10
T4063SPW00 3.5W 220lm 3000K

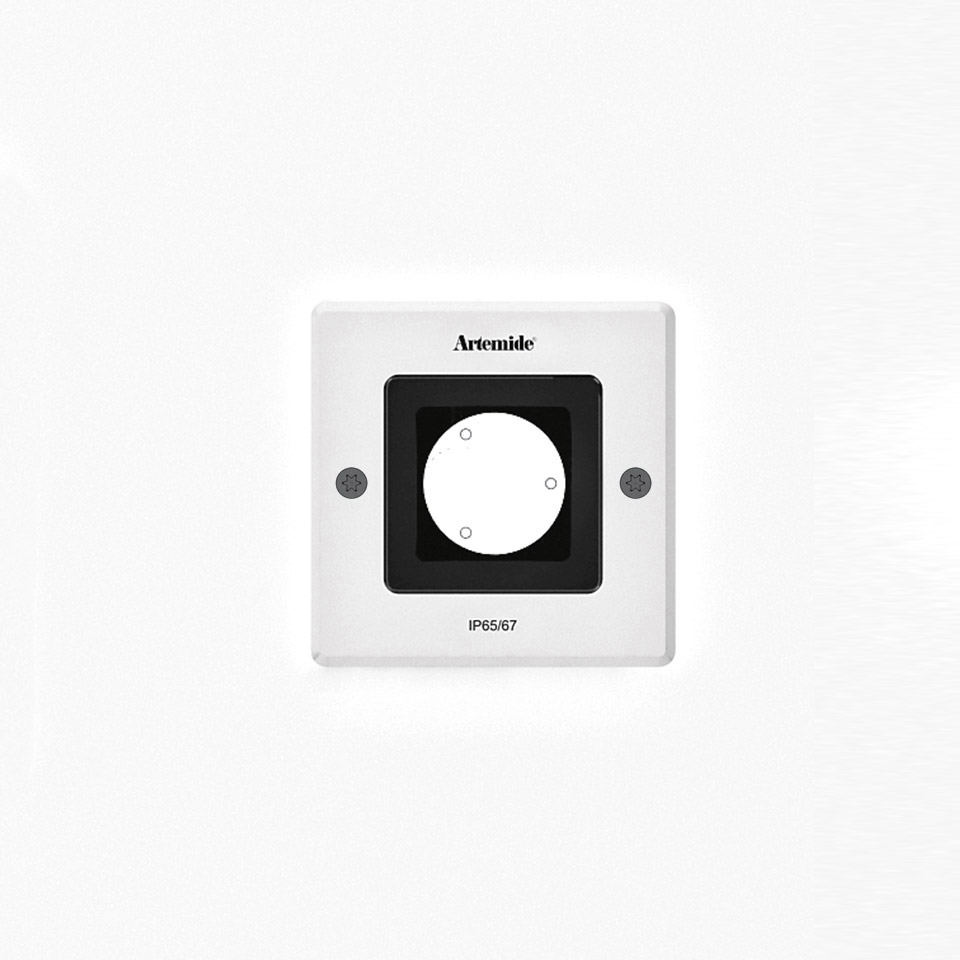

Ego 90 downlight Square 24° 3000K Aluminium IK10
T4063FLW00 3W 179lm 3000K
Ego 90 downlight Square EL 3000K Aluminium IK10
T4063ELPTW00 3.5W 162lm 3000K
Ego Flat 90 downlight Square 10° 3000K Aluminium IK10
T42004SPW00 3.2W 220lm 3000K

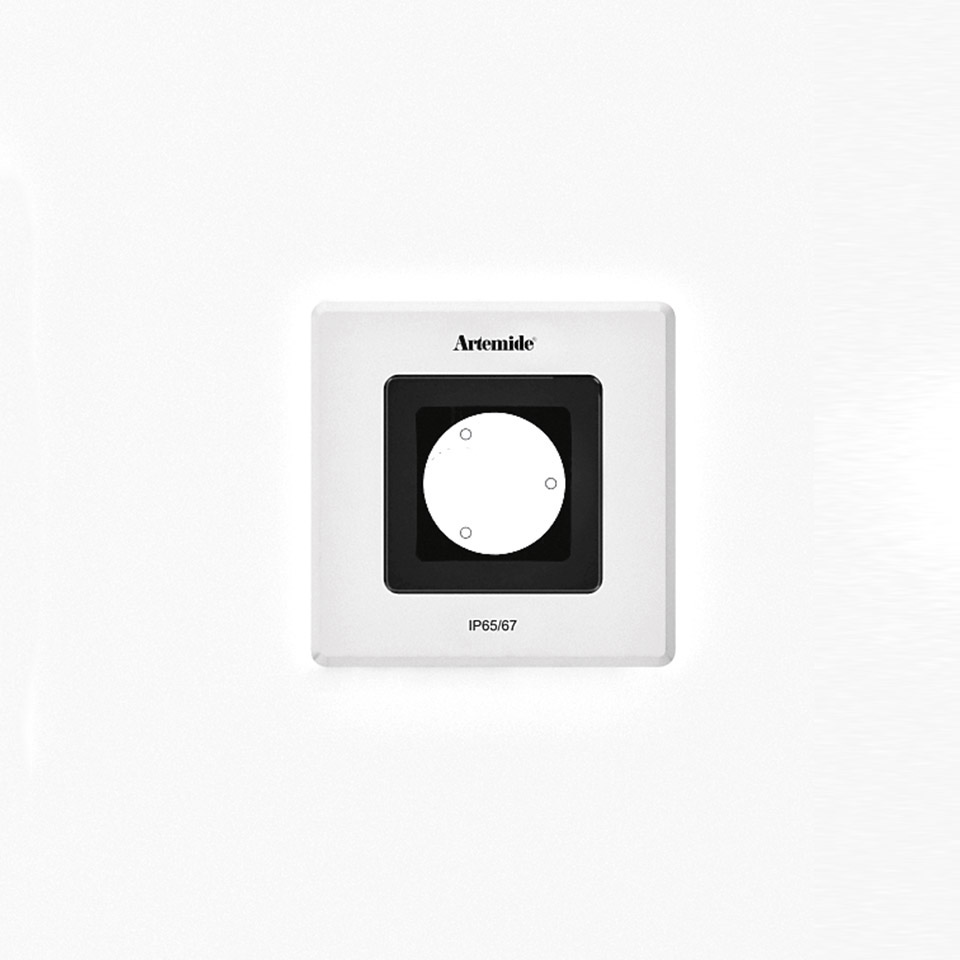

Ego Flat 90 downlight Square 24° 3000K Aluminium IK10
T42004FLW00 3.2W 179lm 3000K
Ego Flat 90 downlight Square EL 3000K Aluminium IK10
T42004ELPTW00 3.2W 162lm 3000K
Ego 90 downlight Round 10° 3000K Inox IK10
T4082SPW00 3.5W 220lm 3000K
Ego 90 downlight Round 24° 3000K Inox IK10
T4082FLW00 3.5W 179lm 3000K
Ego 90 downlight Round EL 3000K Inox IK10
T4082ELPTW00 3.5W 162lm 3000K

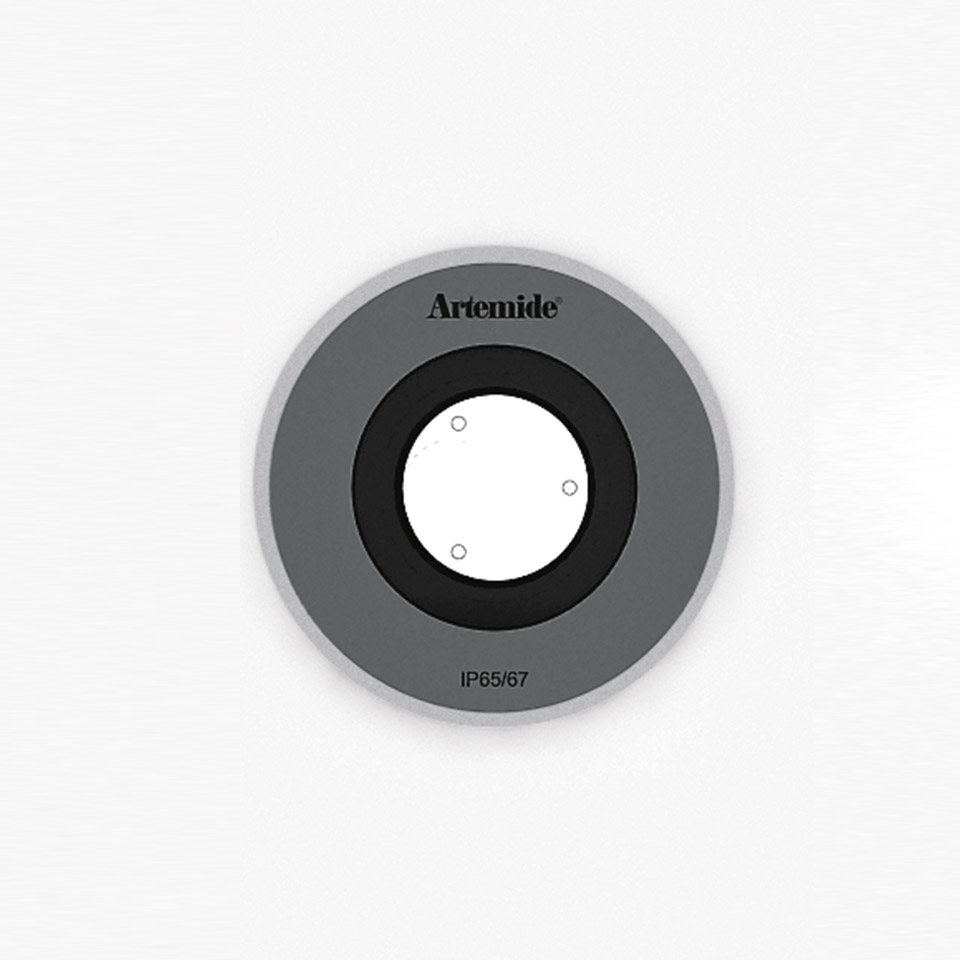

Ego Flat 90 downlight Round 10° 3000K Inox IK10
T42011SPW00 3.2W 220lm 3000K
Ego Flat 90 downlight Round 24° 3000K Inox IK10
T42011FLW00 3.2W 179lm 3000K
Ego Flat 90 downlight Round EL 3000K Inox IK10
T42011ELPTW00 3.2W 162lm 3000K
Ego 90 downlight Round 10° 3000K Aluminium IK10
T4083SPW00 3.5W 220lm 3000K

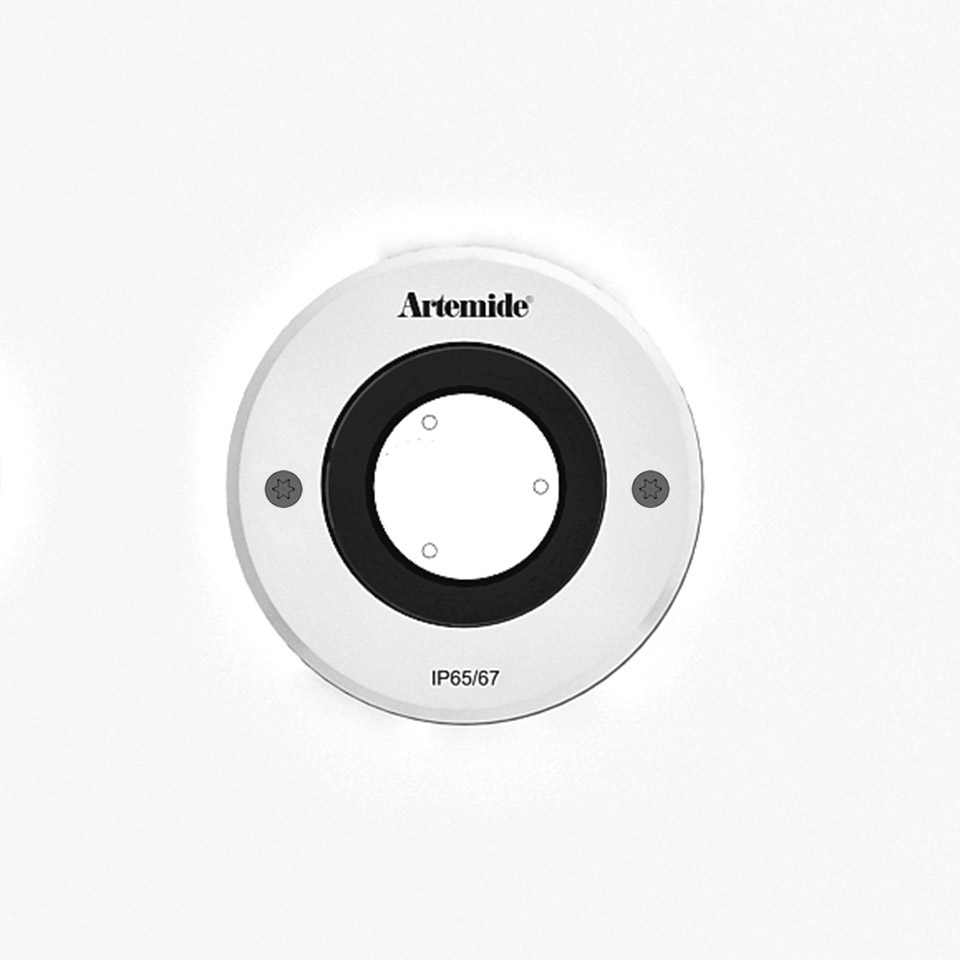

Ego 90 downlight Round 24° 3000K Aluminium IK10
T4083FLW00 3.5W 179lm 3000K
Ego 90 downlight Round EL 3000K Aluminium IK10
T4083ELPTW00 3.5W 162lm 3000K
Ego Flat 90 downlight Round 10° 3000K Aluminium IK10
T42003SPW00 3.2W 220lm 3000K
Ego Flat 90 downlight Round 24° 3000K Aluminium IK10
T42003FLW00 3.2W 179lm 3000K
Ego Flat 90 downlight Round EL 3000K Aluminium IK10
T42003ELPTW00 3.2W 162lm 3000K
