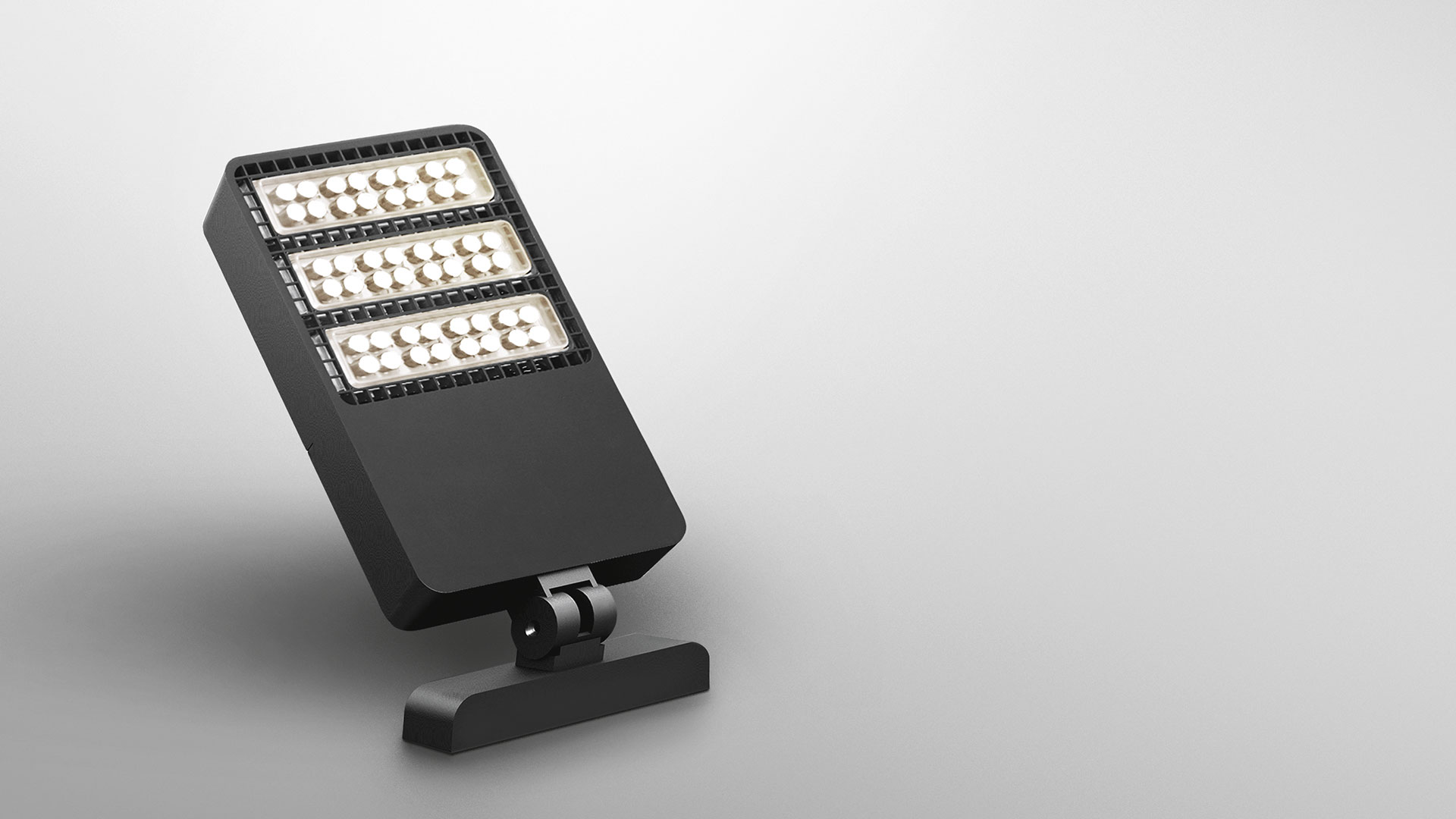

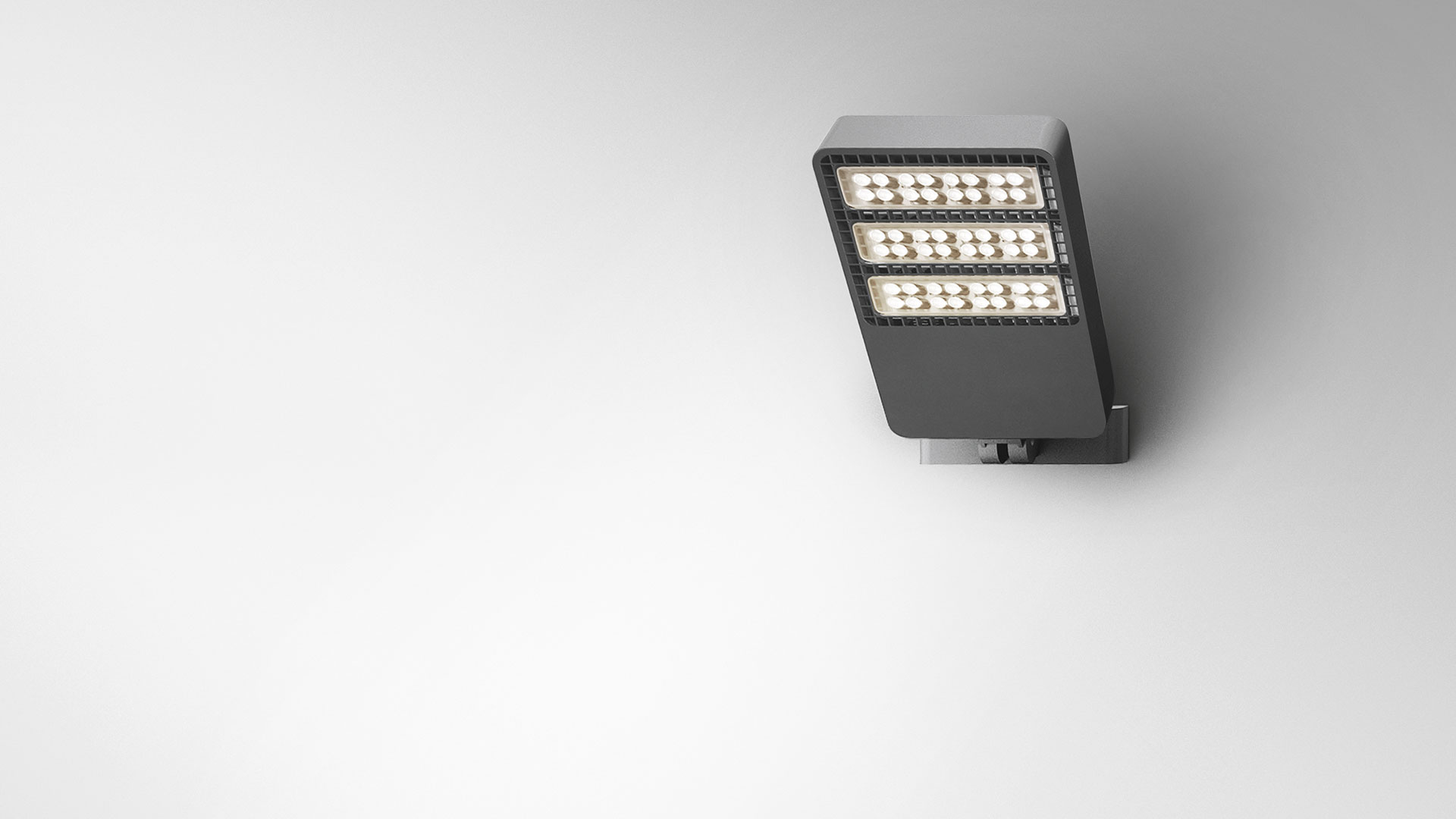

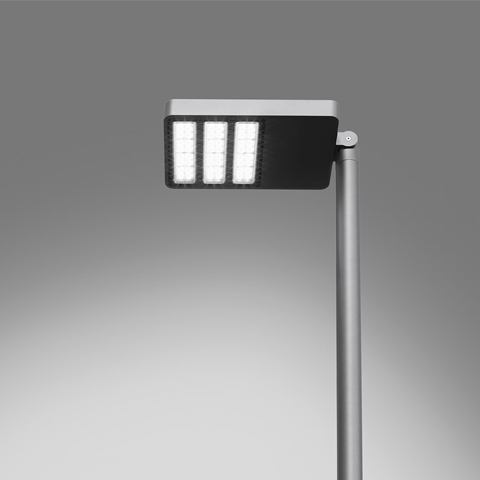

Light fixture with direct emission, with monochromatic LED light sources.Floor, wall, eaves installation. Consists of lighting unit, wiring terminal board and fixing plate. Rotation on the base +/-10°, body tilting +/-90. Positioning is maintained by means of locking dowels.EN AB47100 aluminium body and terminal board, silicone gaskets. Electronic ballast integrated in the body.Polycarbonate diffuser silicone-sealed to the lens supporting unit.Composed by 3 interchangeable optical units. IP67 connector for the electrical connection to the mains, which can be located in the base compartment and is suitable for 5-13.5mm diameter cables.LED circuits with PMMA lenses in 3 beam versions: 5°, 11,5° and elliptical 12x20°All the screws used outside the product are in AISI 316 stainless steel.All the components in die-cast aluminium are painted with 3-stage outdoor treatment: nanotechnologies, anti-oxidizing primer, polyester paint.Technical features of the lighting fixtures in compliance with EN60598-1 and section 2-5. IP Rating IP66.Protection level from 4KV impulse overvoltage.Insulation class II. CE certification.
