Vector Magnetic

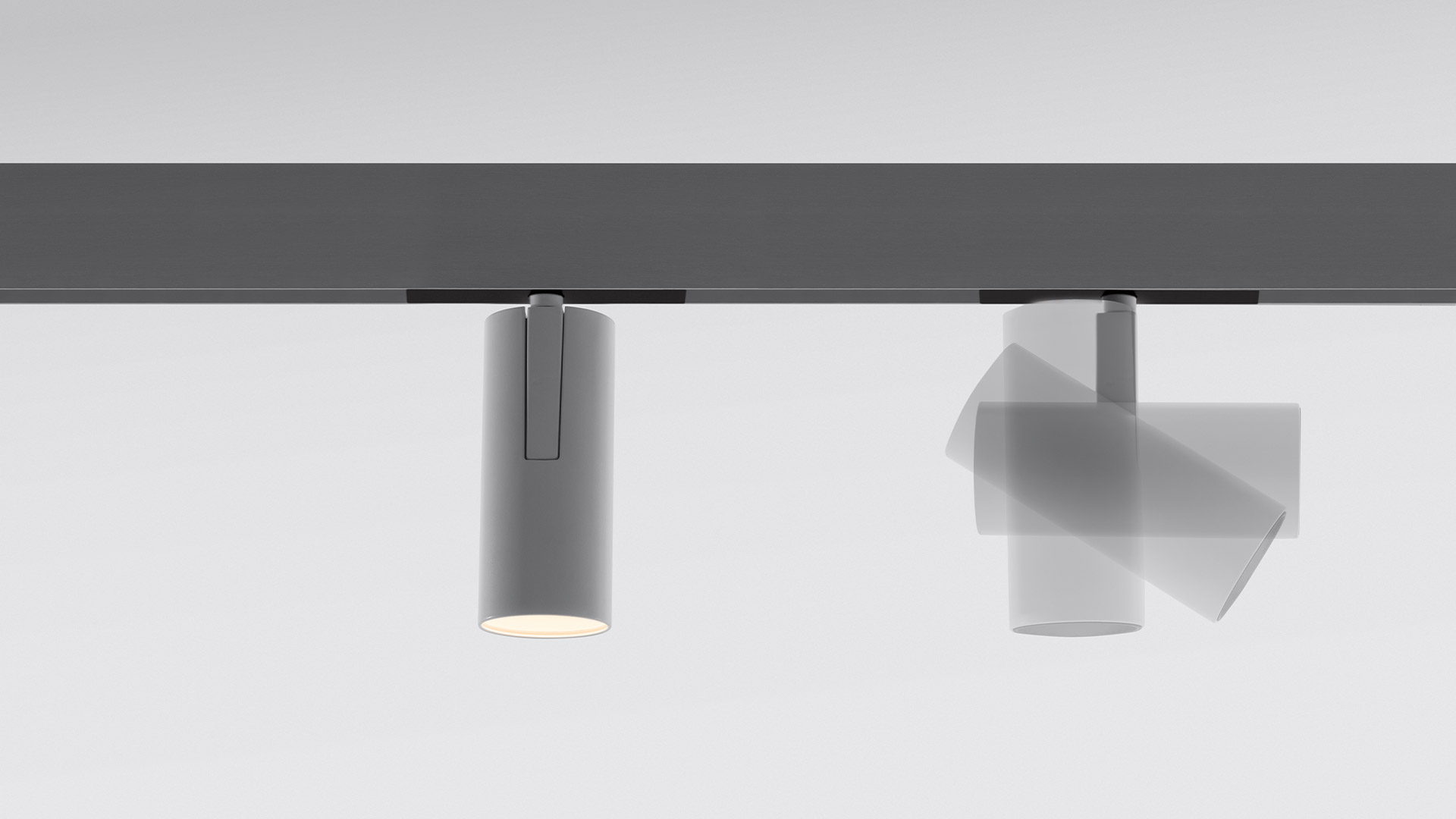

Two sizes with three different beam angles each (spot, flood, wide flood) obtained by means of refractive or hybrid optical units. Junction arm integrated in the spotlight’s body to keep the barycentre aligned with the track and prevent any imbalance in possible suspension versions of the track. The junction allows 360° rotation and 90° tilting for maximum emission adjustment freedom.
Two sizes with three different beam angles each (spot, flood, wide flood) obtained by means of refractive or hybrid optical units. Junction arm integrated in the spotlight’s body to keep the barycentre aligned with the track and prevent any imbalance in possible suspension versions of the track. The junction allows 360° rotation and 90° tilting for maximum emission adjustment freedom.
Product overview
28 Codes found
| code | Watt | lm | Delivered lumens output (lm) | CCT | Colour | product code | product name | download | My Area | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Vector Magnetic 55 zoom - 23W 3000K DALI Black | ||||||||||
|
|
AN10404 | 23W | 1137lm-659lm | 3000K |
|
AN10404 | Vector Magnetic 55 zoom - 23W 3000K DALI Black | ||||
| Vector Magnetic 55 zoom - 23W 3000K DALI White | |||||||||||
| AP10401 | 23W | 1137lm-659lm | 3000K |
|
AP10401 | Vector Magnetic 55 zoom - 23W 3000K DALI White | |||||
| Vector Magnetic 55 zoom - 23W 4000K DALI Black | |||||||||||
| AN15404 | 23W | 1137lm-659lm | 4000K |
|
AN15404 | Vector Magnetic 55 zoom - 23W 4000K DALI Black | |||||
| Vector Magnetic 55 zoom - 23W 4000K DALI White | |||||||||||
| AN15401 | 23W | 1137lm-659lm | 4000K |
|
AN15401 | Vector Magnetic 55 zoom - 23W 4000K DALI White | |||||
|
Vector Magnetic 55 - 26W 16° 3000K DALI Black | ||||||||||
|
|
AP10104 | 26W | 1492lm | 3000K |
|
AP10104 | Vector Magnetic 55 - 26W 16° 3000K DALI Black | ||||
| Vector Magnetic 55 - 26W 16° 3000K DALI White | |||||||||||
| AP10101 | 26W | 1492lm | 3000K |
|
AP10101 | Vector Magnetic 55 - 26W 16° 3000K DALI White | |||||
| Vector Magnetic 55 - 26W 16° 4000K DALI Black | |||||||||||
| AP15104 | 26W | 1492lm | 4000K |
|
AP15104 | Vector Magnetic 55 - 26W 16° 4000K DALI Black | |||||
| Vector Magnetic 55 - 26W 16° 4000K DALI White | |||||||||||
| AP15101 | 26W | 1492lm | 4000K |
|
AP15101 | Vector Magnetic 55 - 26W 16° 4000K DALI White | |||||
| Vector Magnetic 55 - 26W 22° 3000K DALI Black | |||||||||||
| AP10204 | 26W | 1465lm | 3000K |
|
AP10204 | Vector Magnetic 55 - 26W 22° 3000K DALI Black | |||||
| Vector Magnetic 55 - 26W 22° 3000K DALI White | |||||||||||
| AP10201 | 26W | 1465lm | 3000K |
|
AP10201 | Vector Magnetic 55 - 26W 22° 3000K DALI White | |||||
| Vector Magnetic 55 - 26W 22° 4000K DALI Black | |||||||||||
| AP15204 | 26W | 1465lm | 4000K |
|
AP15204 | Vector Magnetic 55 - 26W 22° 4000K DALI Black | |||||
| Vector Magnetic 55 - 26W 22° 4000K DALI White | |||||||||||
| AP15201 | 26W | 1465lm | 4000K |
|
AP15201 | Vector Magnetic 55 - 26W 22° 4000K DALI White | |||||
| Vector Magnetic 55 - 26W 32° 3000K DALI Black | |||||||||||
| AP10304 | 26W | 1596lm | 3000K |
|
AP10304 | Vector Magnetic 55 - 26W 32° 3000K DALI Black | |||||
| Vector Magnetic 55 - 26W 32° 3000K DALI White | |||||||||||
| AP10301 | 26W | 1596lm | 3000K |
|
AP10301 | Vector Magnetic 55 - 26W 32° 3000K DALI White | |||||
| Vector Magnetic 55 - 26W 32° 4000K DALI Black | |||||||||||
| AP15304 | 26W | 1596lm | 4000K |
|
AP15304 | Vector Magnetic 55 - 26W 32° 4000K DALI Black | |||||
| Vector Magnetic 55 - 26W 32° 4000K DALI White | |||||||||||
| AP15301 | 26W | 1596lm | 4000K |
|
AP15301 | Vector Magnetic 55 - 26W 32° 4000K DALI White | |||||
|
Vector Magnetic 40 - 10W 13° 3000K DALI Black | ||||||||||
|
|
AP00104 | 10W | 540lm | 3000K |
|
AP00104 | Vector Magnetic 40 - 10W 13° 3000K DALI Black | ||||
| Vector Magnetic 40 - 10W 13° 3000K DALI White | |||||||||||
| AP00101 | 10W | 540lm | 3000K |
|
AP00101 | Vector Magnetic 40 - 10W 13° 3000K DALI White | |||||
| Vector Magnetic 40 - 10W 13° 4000K DALI Black | |||||||||||
| AP05104 | 10W | 540lm | 4000K |
|
AP05104 | Vector Magnetic 40 - 10W 13° 4000K DALI Black | |||||
| Vector Magnetic 40 - 10W 13° 4000K DALI White | |||||||||||
| AP05101 | 10W | 540lm | 4000K |
|
AP05101 | Vector Magnetic 40 - 10W 13° 4000K DALI White | |||||
| Vector Magnetic 40 - 10W 20° 3000K DALI Black | |||||||||||
| AP00204 | 10W | 584lm | 3000K |
|
AP00204 | Vector Magnetic 40 - 10W 20° 3000K DALI Black | |||||
| Vector Magnetic 40 - 10W 20° 3000K DALI White | |||||||||||
| AP00201 | 10W | 584lm | 3000K |
|
AP00201 | Vector Magnetic 40 - 10W 20° 3000K DALI White | |||||
| Vector Magnetic 40 - 10W 20° 4000K DALI Black | |||||||||||
| AP05204 | 10W | 584lm | 4000K |
|
AP05204 | Vector Magnetic 40 - 10W 20° 4000K DALI Black | |||||
| Vector Magnetic 40 - 10W 20° 4000K DALI White | |||||||||||
| AP05201 | 10W | 584lm | 4000K |
|
AP05201 | Vector Magnetic 40 - 10W 20° 4000K DALI White | |||||
| Vector Magnetic 40 - 10W 28° 3000K DALI Black | |||||||||||
| AP00304 | 10W | 528lm | 3000K |
|
AP00304 | Vector Magnetic 40 - 10W 28° 3000K DALI Black | |||||
| Vector Magnetic 40 - 10W 28° 3000K DALI White | |||||||||||
| AP00301 | 10W | 528lm | 3000K |
|
AP00301 | Vector Magnetic 40 - 10W 28° 3000K DALI White | |||||
| Vector Magnetic 40 - 10W 28° 4000K DALI Black | |||||||||||
| AP05304 | 10W | 528lm | 4000K |
|
AP05304 | Vector Magnetic 40 - 10W 28° 4000K DALI Black | |||||
| Vector Magnetic 40 - 10W 28° 4000K DALI White | |||||||||||
| AP05301 | 10W | 528lm | 4000K |
|
AP05301 | Vector Magnetic 40 - 10W 28° 4000K DALI White | |||||
